Traffic guidance systems – for more visibility and safety. Guidance systems with LED are a solid basis for safe traffic guidance. They are an important focus in our product range. Whether handrails or wild animal warning reflectors for delineators – the products we present for you in our well-assorted webshop have a few characteristics in common: on the one hand, it is the well thought-out basic idea that has been realised with a high degree of practical relevance. On the other hand, it is the high quality made in Germany that we have implemented – with selected materials, innovative techniques and precise manufacturing. Design is also always an important aspect for us, which we take into account comprehensively.

This overview describes our competence in traffic guidance systems. If you have any questions, our experts are there for you – professionally and specifically for your individual project.

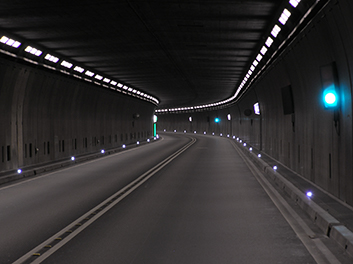

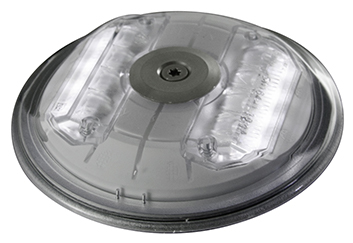

Special features:

  • One or two-sided with 4 LEDs each
  • EMC-certified, no inductive interference fields
  • quick and easy mounting
  • latest LED technology, very low power consumption
  • vandal-proof, reinforced plastic/V4A investment casting
  • dimmable via control unit
  • can be combined with other GIFAS LED control systems as required
  • modular construction, low maintenance
  • systems used many times in various applications

Technical specifications:

Light colour: white ~5.600K
Light intensity: 50 cd
Service life: L90 / B10 100.000h
Protection category: IP68
Protection class: III
Input voltage: 24 VDC (range16-48 VDC)
Diameter: 110mm
Operating range of temperature: -40°C to +55°C
Traversability: up to 5t (low-speed traffic with air-filled tyres)

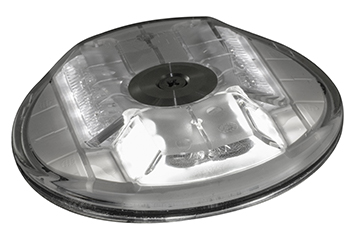

Special features:

  • two-sided with 4 white LEDs each
  • optical guidance system in the direction of travel and in the opposite direction

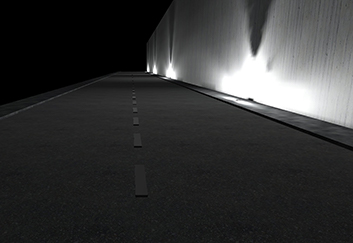

  • escape route lighting directed towards the wall with 4 white LEDs

Technical specifications:

Light colour: Guidance system 5,600K
Escape route lighting 5,900K
Light intensity: Guidance system 65 cd
Escape route lighting 1,390 cd
Service life: Guidance system L90/B10 100,000h
Escape route lighting min. 10,000h
Protection category: IP68
Protection class: III
Input voltage: 48 VDC (range18-48 reverse polarity protected)
Diameter: 110mm
Operating range of temperature:: -40°C to +55°C
Traversability: up to 5t (low-speed traffic with air-filled tyres)

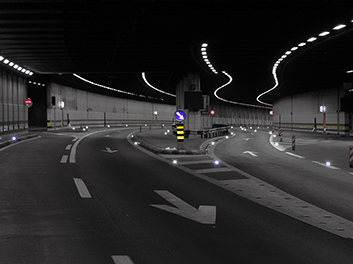

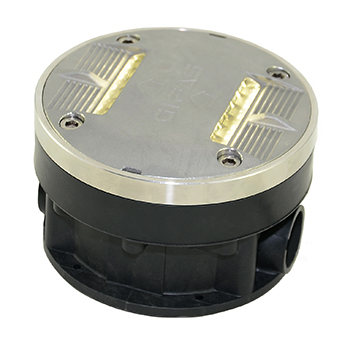

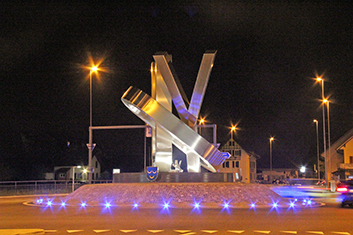

Special features:

  • double-sided with 6 LEDs each
  • permanently traversable marker light, which covers the entire temperature range summer/winter (range: -30 to +75°C) and withstands mechanical loads (40t)
  • for safety reasons (danger of slipping) matt, circular luminaire
  • protrusion above road surface max 4.0mm
  • resistant to grit, spikes/snow chains and road cleaning
  • no protruding edges and corners on which a snow plough can hook in
  • surface and light emission area are designed in such a way that as little dirt as possible can accumulate
  • absolutely waterproof, frost-proof, resistant to UV sunlight/chemicals/oil and road salt
  • controlled by push-button, radar sensor, loop, vibrating plate or via timer (e.g. in school buildings)
  • very good visibility in darkness, wetness and snow
  • further applications: e.g. lane marking

Technical specifications:

Light colour:: white (5.600K)
orange (600nm)
blue (470nm)
Light intensity:: 30cd
Service life:: 50.000h
Protection category:: IP68/IPX9K
Protection class:: III
Input voltage:: 24 VDC (range 18-44 VDC)
Diameter: 120mm
Operating range of temperature:: -30°C to+75°C
Traversability: D400 according to DIN EN124

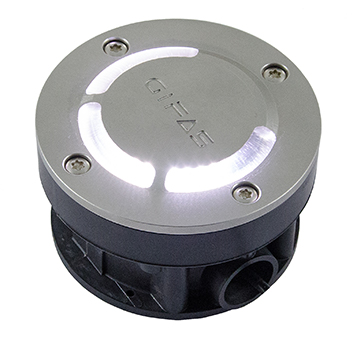

Special features:

  • lower part made of special plastic IXEF
  • upper part V4A stainless steel
  • electronics fully encapsulated
  • brightness of the light modules easily adjustable via control unit and influenceable via automatic light control or via direct control from the tunnel control centre

Technical specifications:

Light colour: white (5.600K)
orange (606nm)
blue (470nm)
Light intensity: 20cd (white)
Service life: 50.000h
Protection category: IP68
Protection class: III
Input voltage: 24 VDC (range 18-44 VDC)
Diameter: 120mm
Operating range of temperature:: -30°C to +55°C
Traversability: B125 according to DIN EN124

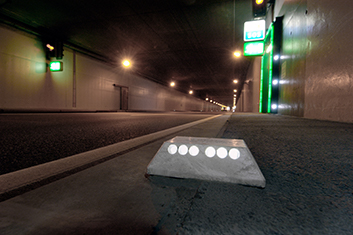

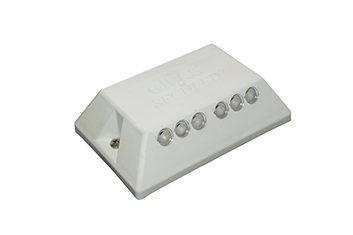

Special features:

  • wired connection
  • upper part made of polyamide
  • two-part construction facilitates maintenance and repair work
  • brightness of the light modules easily adjustable via control unit and influenceable via automatic light control or via direct control from the tunnel control centre

Technical specifications:

Light colour: white (5,100K)
Light intensity: 30cd
Service life: 50,000h
Illuminant: 12 LED
Protection category: IP67
Protection class: III
Input voltage: 24 VDC (range 16-40 VDC)
Dimensions: 178.4 x 118 x 53.5 mm
