- EX solid rubber cable drum as per DIN 14680-A1
- Made from zinc-plated sheet steel with powder coating in RAL 5002 (blue) with solid rubber carrying handle
- Velcro strip for lateral fastening of the plug
- Rotating auxiliary drum
- Without slip rings and thermal overload protection
- Brass feet for low earth contact resistance and spark protection
- For explosion-risk areas Zone 1, Zone 2
- High mechanical stability
- Impact-resistant and ageing-resistant
- External, maintenance-free parking brake
- Resistant to chemical influences
- Resistant to oils and acids
- UV and weather resistant

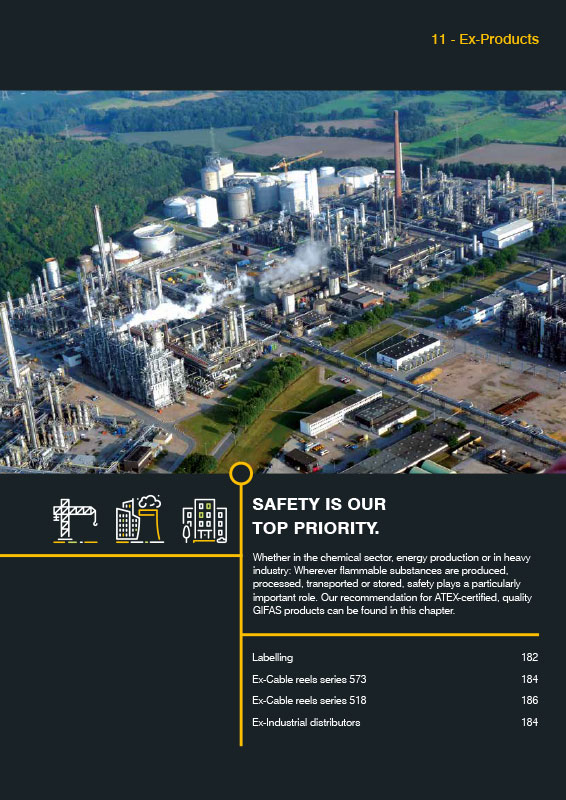

Catalog-Download
Anywhere that flammable gases, vapurs or dust is able to mix up with air or oxygen is a risk of explosion. This potential does not just exist only in the chemical industry and mining, also Bottling plants for alcoholic liquids are endangered. Any undeirsable explosion imperil the health and lifes of anyone located around and is very likely to lead to serious material damage can be the consequences.
Where safety is an absolute must, GIFAS Ex products are used wherever there is a risk of explosion. Tested quality guaranteed.
For further information please have a look at thePDF on the left side or contact us! We are looking forward to hear from you!
Special features:
Technical specifications:
| Labeling: | Ex II 2 G/ EEx de IIA T6 |
| Explosion protection: | EEx de IIA T6 |
| Dimensions: | 554 x 380 x 310 mm |
| Protection category: | IP 65 |
| Sim. factor: | 1 |
| Weight: | 518 Ex 230 V / 16 A: approx. 24 kg / 518 Ex 400 V / 16 A: approx. 30 kg |
Special features:
- Solid rubber cable reel in Ex design
- For explosion-risk areas Zone 1, Zone 2
- with connectors from STAHL, CEAG, APPLETON
- Zinc-plated steel tube frame, black powder-coated
- Design with K2 and Ex-labelling
- High mechanical stability
- Impact-resistant and aeging-resistant
- Maintenance free
- internal ball bearing
- practical folding handle
- Stops by mechanical latching
- Resistant to chemical influences
- Resistant to oils an acids
- UV-and wheather resistant
-
Equipped with: 2x CEE built-in socket outlets 16A or 1x CEE built-in socket outlets 32A
Technical specifications:
| Labeling: | Ex II 2 G Ex db ed IIC T65 Gb |
| Protection category: | IP 66 |
| Protection class: | II |
| GI Factor: | I |
| EC type examination certificate: : | SEV 18 ATEX 0130 |
Special features:
- Housing material polyester, glass fiber reinforced
- Housing color black
- Plug and bottle cover made of polyamide
- Trumpet fitting M32
Technical specifications:
| Labelling: | II 2 G / Ex e d IIC T6 |
| Explosion protection: | EEx ed IIC T5/T6 |
| Proetction category: | IP 66 |
| Frequency: | 50/60Hz |
| Temperature: | -20°C bis +40°C |
