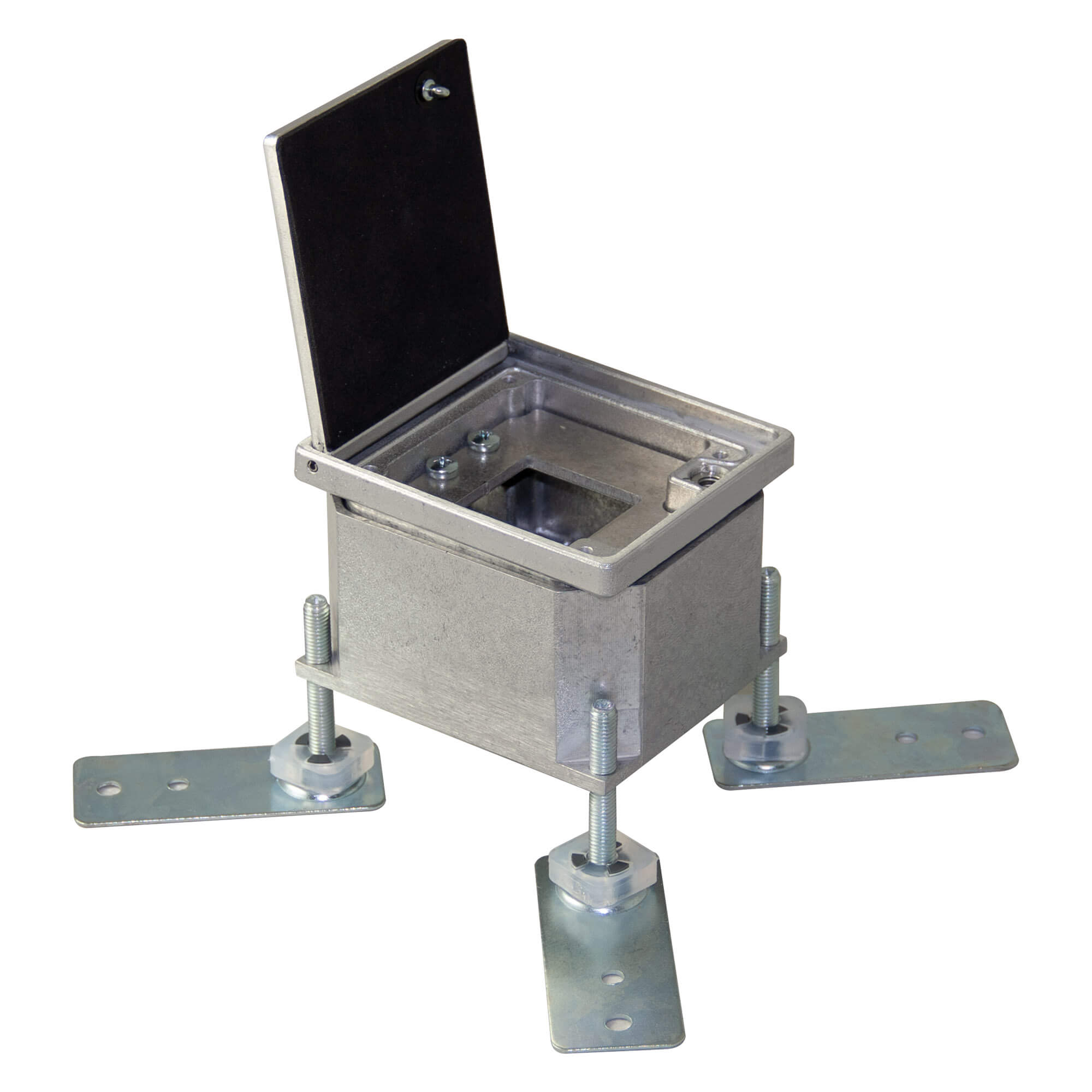

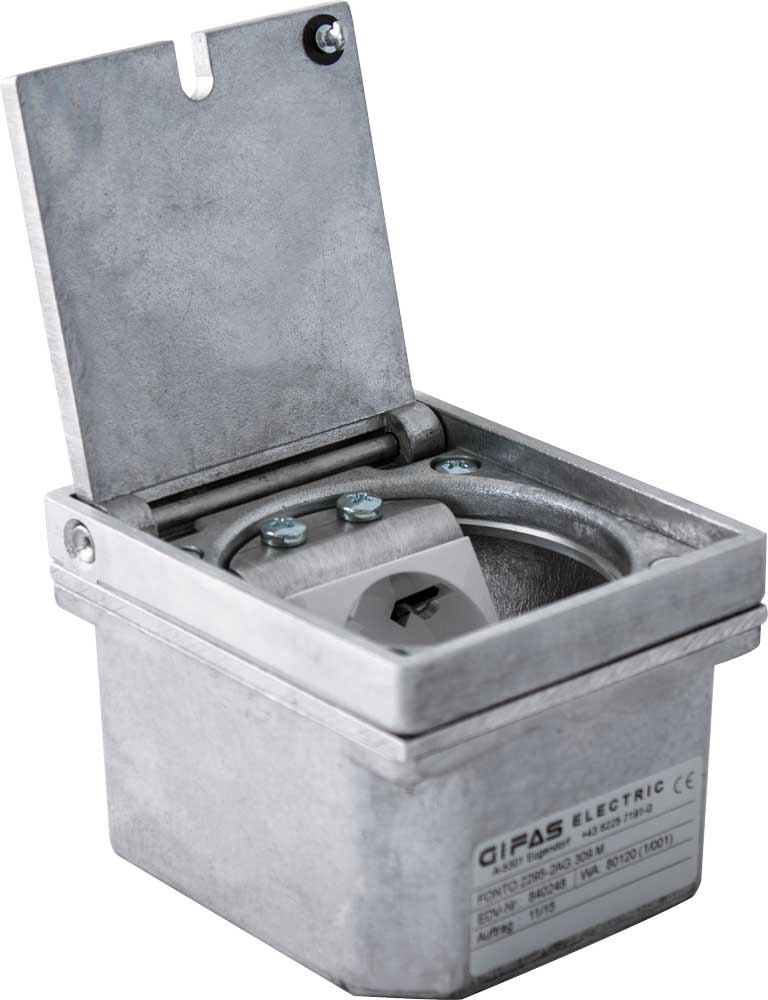

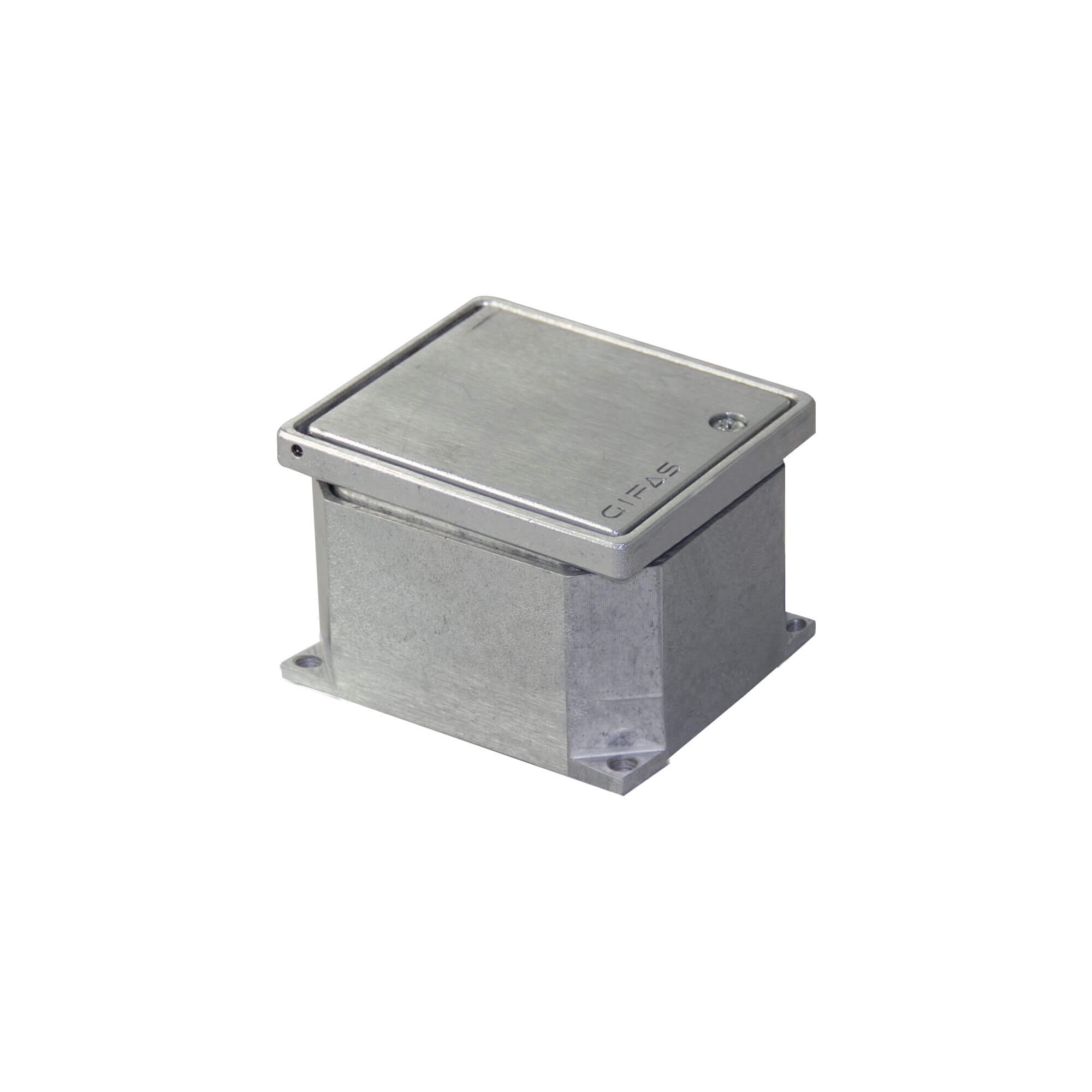

- Floor outlet with hinged cover, to be set at floor level
- For 1 x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- when closed, suitable for cleaning with wet sweepers (IP 65)
- Only for dry clean floors, both when closed and when plugged in (IP 20)
Catalog-Download
The well designed and robust floor outlets, made of aluminium, are available in different sizes. These smart allrounders are used in congress halls and event spaces, hotels and gastronomy, company buildings and industrial areas or outdoor facilities- basically anywhere where high levels of functionality and safety is required.
All models are passable and even some can be used on floors that require wet cleaning.
For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!
Special features:
Technical specifications:
| Outer dimensions (L x W): |
110 x 95 mm |
| Installation depth: | 75 mm |
| Material: | Aluminium natural (resistant to salt- and seewater) |
| Color acc. to tabulation: | Aluminium natural |
| Maximum static load acc. to EN 50085: | 20 kN |
Special features:
- Floor outlet with hinged cover, to be set at floor level
- For 1 x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- when closed, suitable for cleaning with wet sweepers (IP 65)
- Only for dry clean floors when plugged in (IP 20)
Technical specifications:
| Outer dimensions (L x W): |
110 x 95 mm |
| Installation depth: | 75 mm |
| Material: | Aluminium natural (resistant to salt- and seewater) |
| Color acc. to tabulation: | Aluminium natural |
| Maximum static load acc. to EN 50085: | 20 kN |

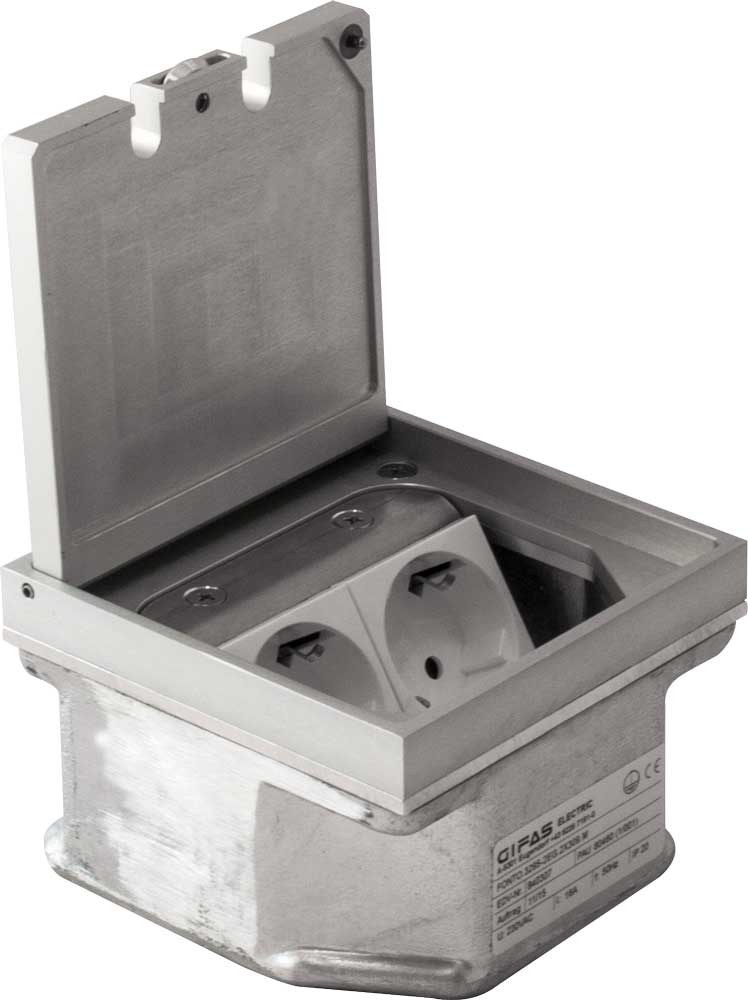

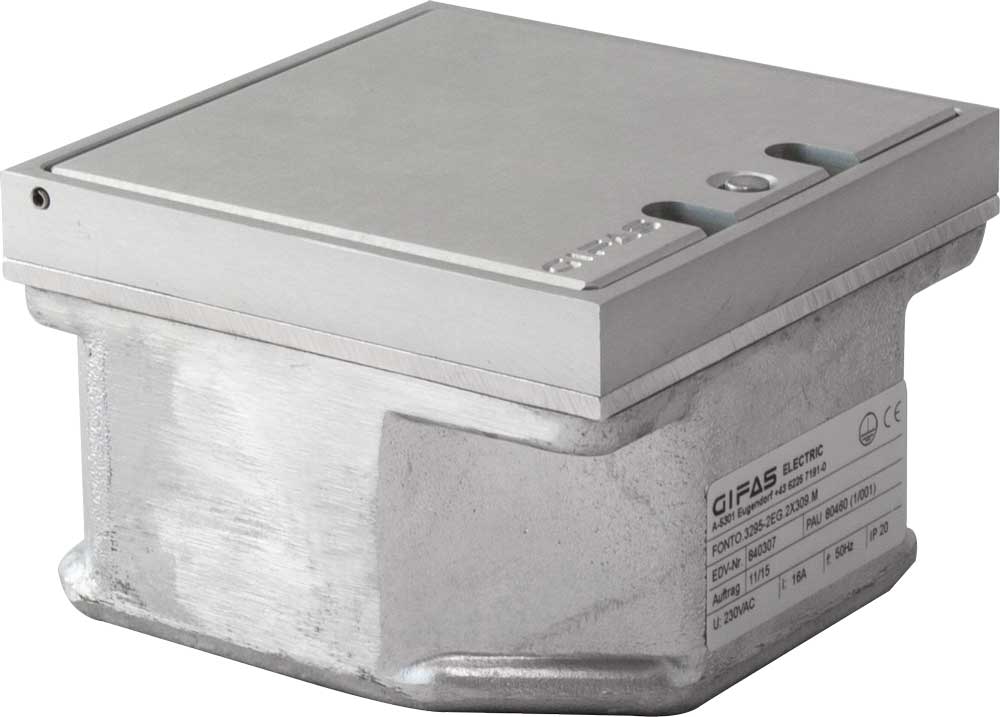

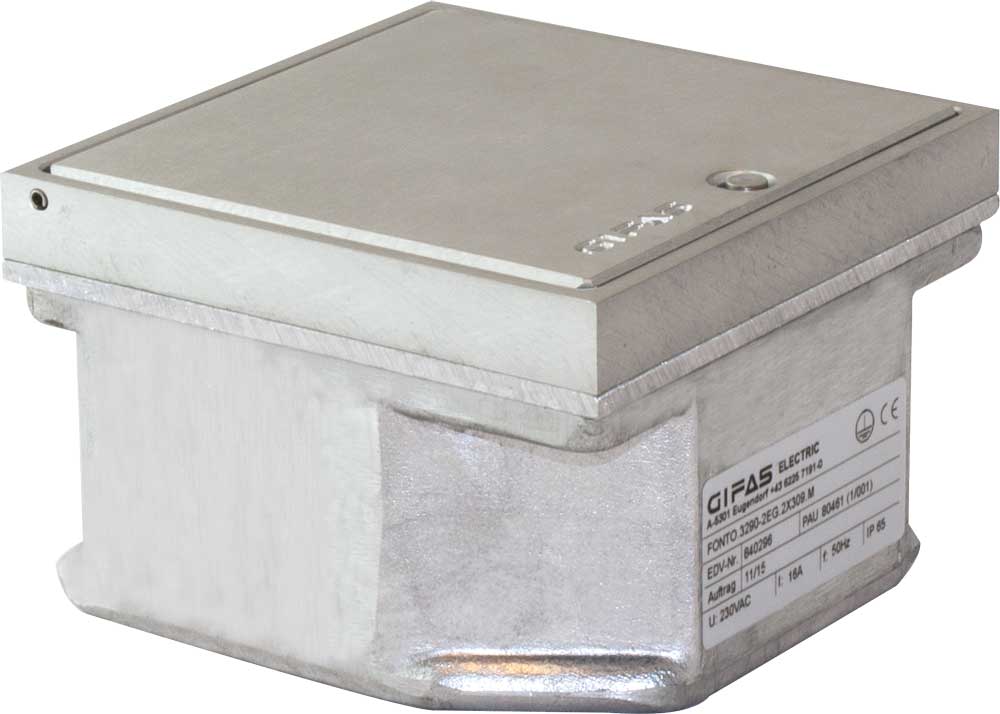

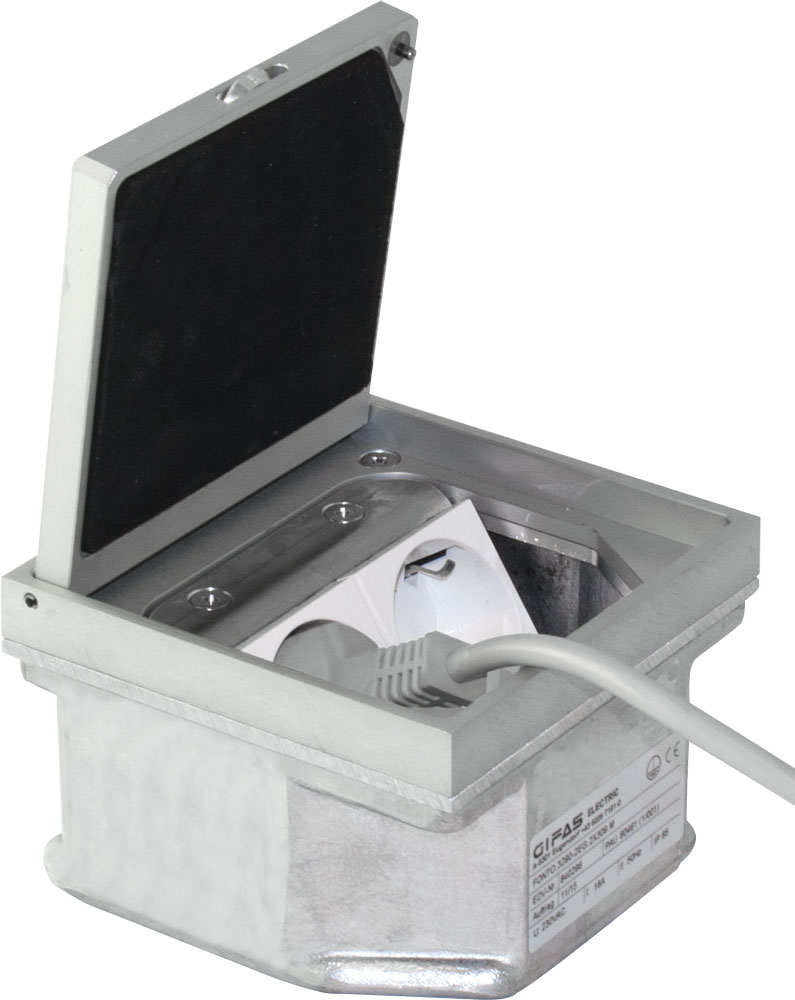

Special features:
- Floor outlet with hinged cover, to be set at floor level
- For 2x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- Suitable for maintainance with wet sweeping devices when closed (IP 65)
- When plugged in: only for floors that are dry cleaned (IP 20)
Technical specifications:
| Outer dimensions (L x W): |
119 x 119 mm |
| Installation depth: | 75 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized or stainless stell colored anodized |
| Maximum static load acc. to EN 50085: | 20 kN |
Special features:
- Floor outlet with hinged cover, to be set at floor level, including 2 x cable outlets
- For 2x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- Only for dry clean floors, both when closed and when plugged in (IP 20)
Technical specifications:
| Outer dimensions (L x W): |
119 x 119 mm |
| Installation depth: | 75 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized or stainless stell colored anodized |
| Maximum static load acc. to EN 50085: | 10 kN |

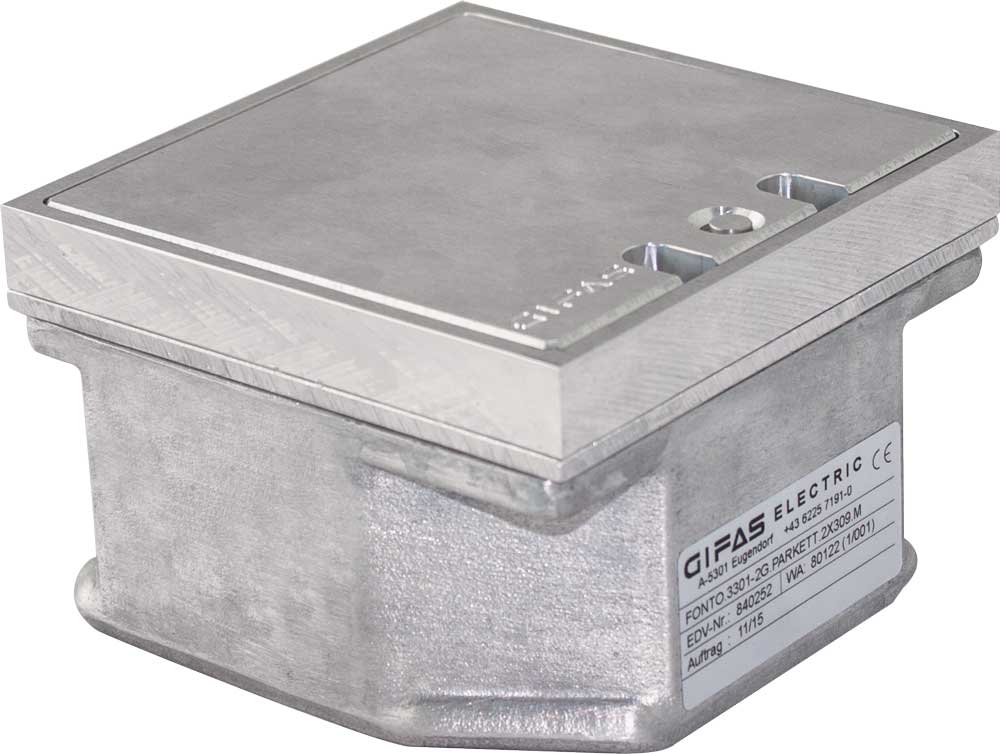

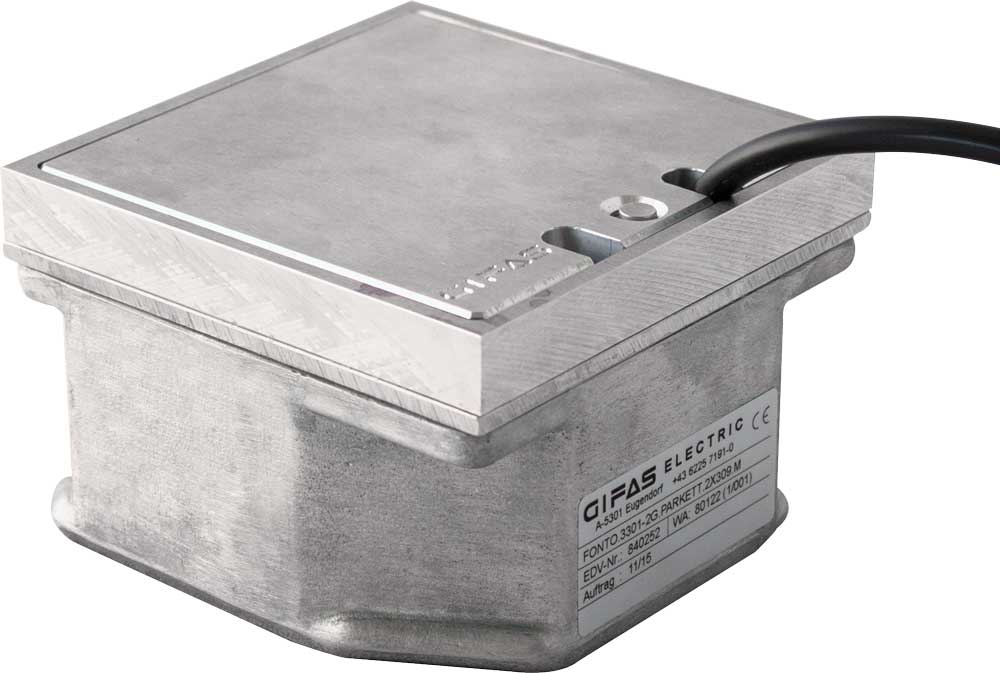

Special features:
- Floor outlet with hinged cover, to be set at floor level
- For 2x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- Suitable for maintainance with wet sweeping devices when closed (IP 65)
- When plugged in: only for floors that are dry cleaned (IP 20)

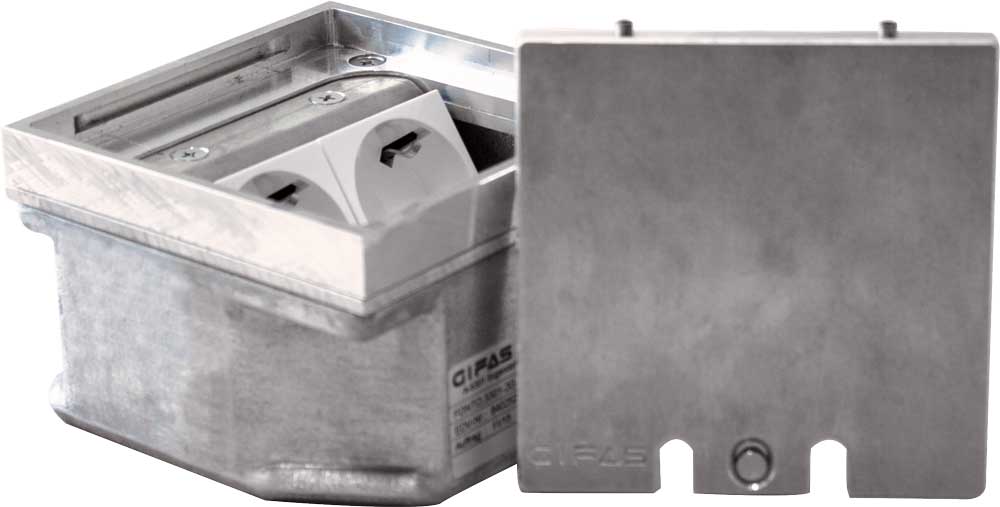

- incl. Option option parquet
Technical specifications:
| Outer dimensions (L x W): |
119 x 119 mm |
| Installation depth: | 77 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized or stainless stell colored anodized |
| Maximum static load acc. to EN 50085: | 20 kN |

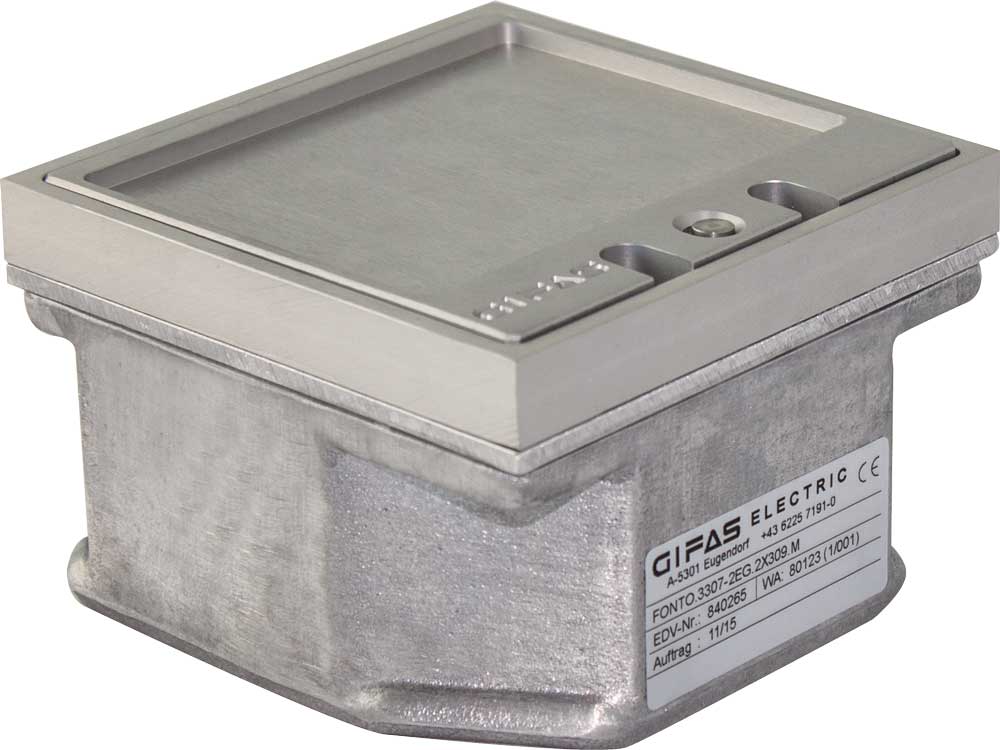

Special features:
- Floor outlet with hinged cover, to be set at floor level
- For 2x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- Suitable for maintainance with wet sweeping devices when closed (IP 65)
- When plugged in: only for floors that are dry cleaned (IP 20)
- Hinged cover removable
- Usage for carpets
Technical specifications:
| Outer dimensions (L x W): |
119 x 119 mm |
| Installation depth: | 77 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized or stainless stell colored anodized |
| Maximum static load acc. to EN 50085: | 10 kN |

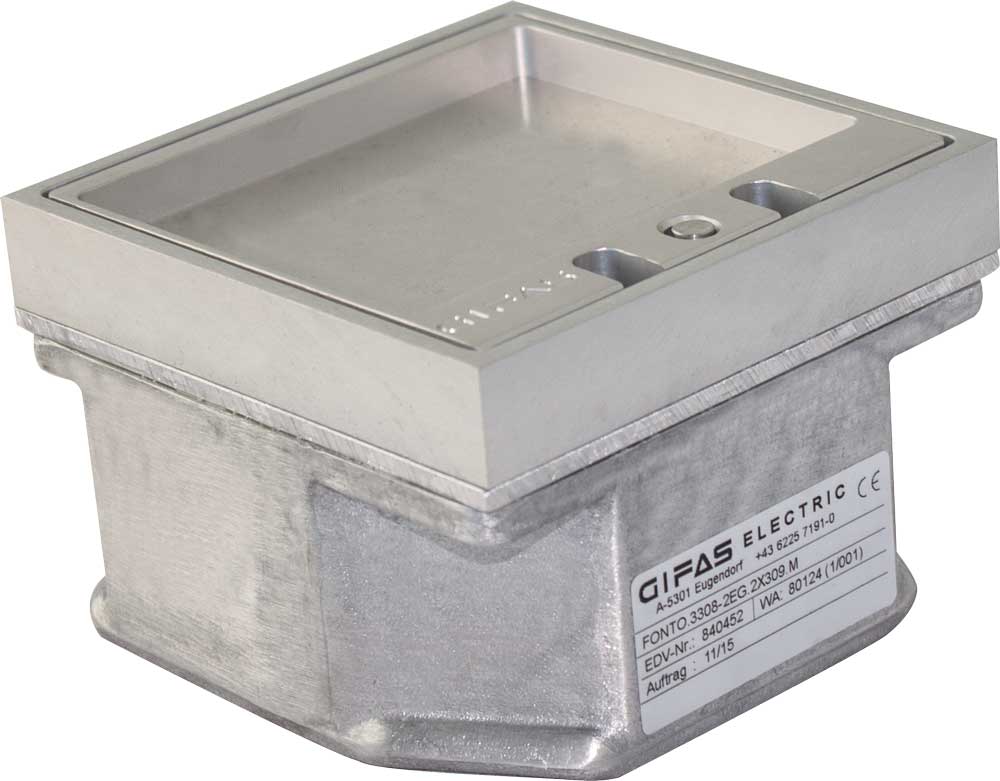

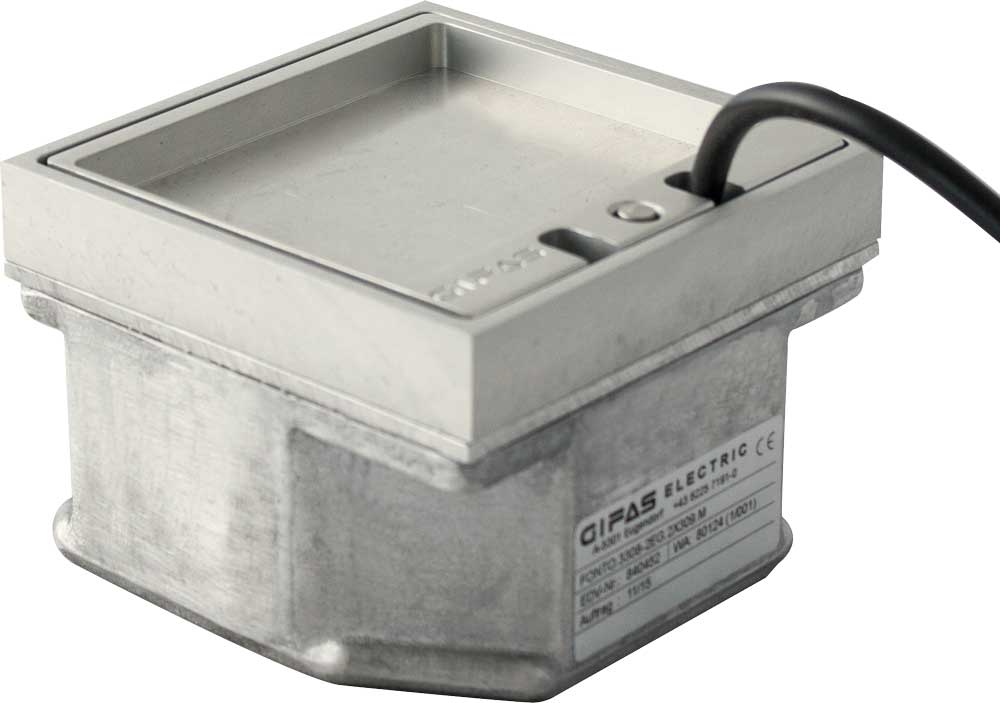

Special features:
- Floor outlet with hinged cover, to be set at floor level
- For 2x input 45 x 45 x 4 mm (e.g. Schuko, RJ 45, etc.)
- Can be travelled over when closed
- Suitable for maintainance with wet sweeping devices when closed (IP 65)
- When plugged in: only for floors that are dry cleaned (IP 20)
- Hinged cover removable
- Usage for stone flooring
Technical specifications:
| Outer dimensions (L x W): |
119 x 119 mm |
| Installation depth: | 82 mm |
| Material: | Aluminium natural anodized (resistant to salt- and seewater) |
| Color acc. to tabulation: | Alu colored anodized or stainless stell colored anodized |
| aximum static load acc. to EN 50085: | 10 kN |

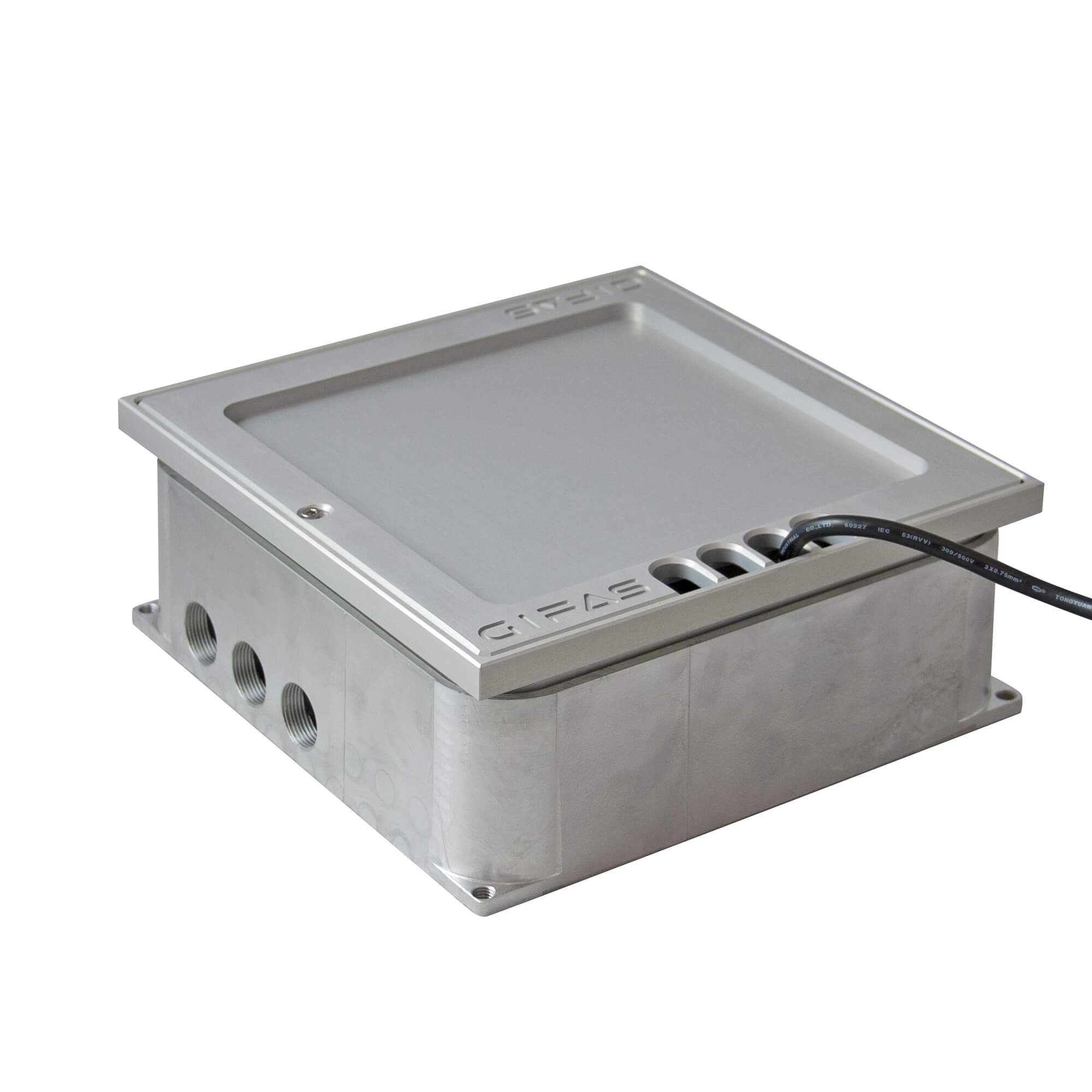

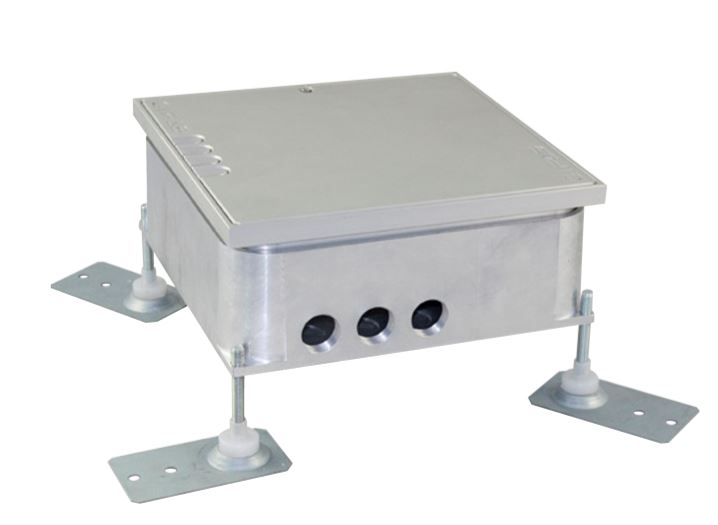

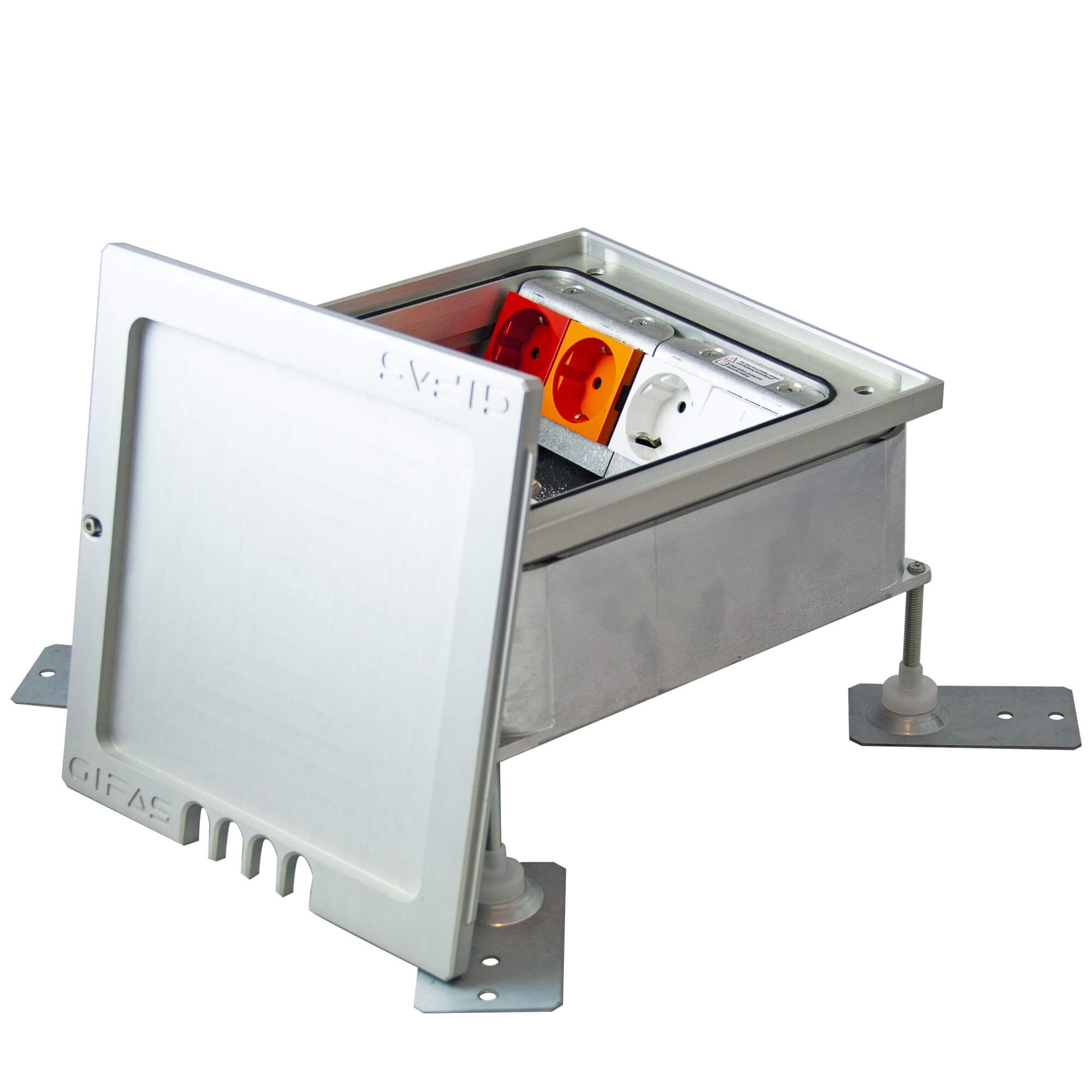

Special features:
- Frame that can be leveled when offset (+/- 5mm)
- for easy adjustment to the finished floor level
- Floor socket to be set at floor level with removable cover
- For 8 x use 45 x 45 x 4 mm (e.g. Schuko, RJ45, TV, HDMI, USB etc.
- Can be driven on when closed
- When closed, suitable for cleaning with wet sweepers (IP65)
- when plugged in: only for dry-cleaned floors (IP20)
Technical specifications:
| Outer dimensions (L x B): | 240 x 240 mm |
| Installation depth:: | ca. 95 mm (Delivery status) |
| Levelable: | 90 - 100 mm |
| Installation height with leveling foot: | 105 - 150 mm |
| Installation height with threaded pin extension: | 105 - 250 mm |
| Material: | Aluminium natural (resistant to salt- and seewater) |
| Colour: | Aluminum colored anodized |
| Maximum static surface load based on EN 50085: | 20kN |

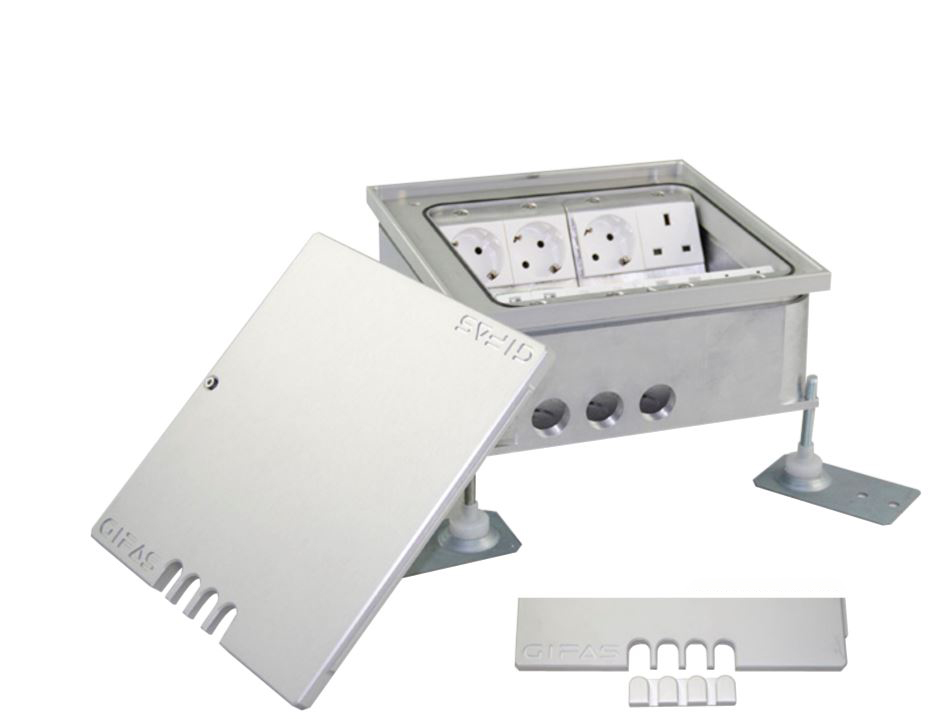

Special features:
- Frame that can be leveled when offset (+/- 5mm)
- for easy adjustment to the finished floor level
- Floor socket to be set at floor level with removable cover
- For 8 x use 45 x 45 x 4 mm (e.g. Schuko, RJ45, TV, HDMI, USB etc.)
- Can be driven on when closed
- When closed, suitable for cleaning with wet sweepers (IP65)
- when plugged in: only for dry-cleaned floors (IP20)
Technical specifications:
| Outer dimensions (L x B) : | 240 x 240 mm |
| Installation depth: | ca. 95 mm (delivery status) |
| Levelable: | 90 - 100 mm |
| Installation height with leveling foot: | 105 - 150 mm |
| Installation height with threaded pin extension: | 105 - 250 mm |
| Recess depth for floor covering:: | 7 mm |
| Material: | Natural aluminum (salt and sea water resistant) |
| Colour : | Aluminum colored anodized |
| Maximum static surface load based on EN 50085: | 20kN |
