- Full luminous flux, is available immediately
- low energy consumption with high light output
- minimal temperature development
- at least 50,000 hours of operation
- shockproof cover (IK10)
- high energy efficiency
- maintenance-free
- Stainless steel closures and fasteners
- no UV / IR radiation
- shock and vibration insensitive
-
Incl. through-wiring 5 x 2,5qmm
Catalog-Download
GIFAS has revised its range of protective tube lights completely. In particular, the degree of protection has been raised up to IP68 and the connection has been massively improved. The protective tube lights work thanks to their high protection even in extreme working environments without any trouble and maintenance!
For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!
Special features:
Technical specifications:
| Input voltage: | 220–240 VAC |
| Cover: | GFK |
| Light colour: | 5,000 K |
| Temperature operation range: | -15°C to +35°C |
| Protection class: | I |
| Protection category: | IP 65 |
| Beam Angle: | 120° |
| Impact resistance: | IK 10 |
Special features:
- even light dispersion
- low glare effect thanks to satin-finish cover

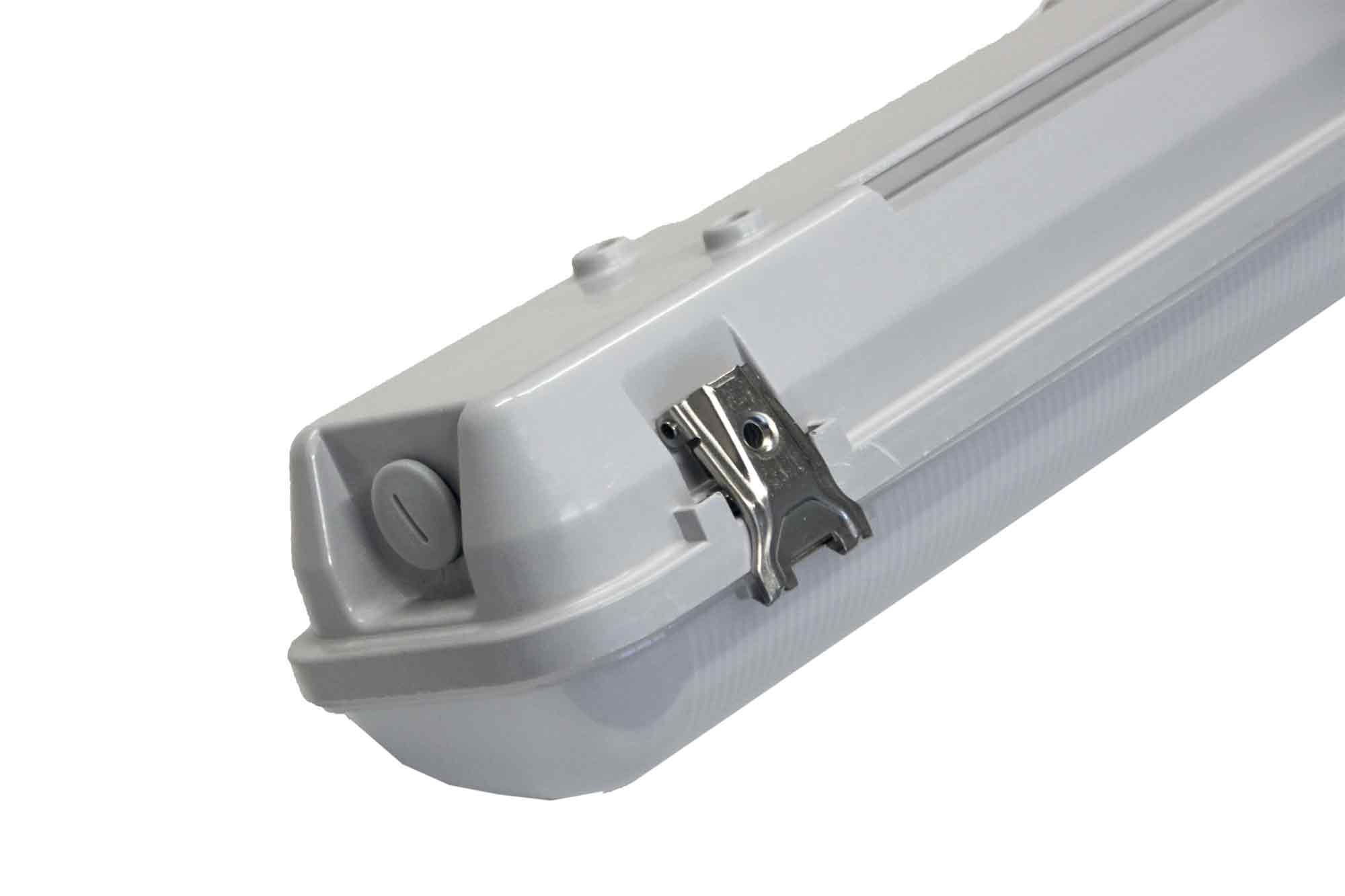

- simple installation via mounting clip (including delivery) made of stainless spring steel (1,4310)
- low energy consumption with high luminous efficacy
- 5 years warranty
Technical specifications:
| Input voltage: | 220~277 V AC |
| Cover: | aluminum grey |
| Light colour: | 3,000 K / 4,000 K / 5,000 K |
| Temperature operation range: | -20 °C to +40 °C |
| Protection category: | IP 66 |
| Impact resistant: | IK 10 |
| Beam Angle: | 120° |
| Illuminance: | 1,964 lm / 3,929 lm / 6,574 lm |
| LED efficiency: | 120 lm/W |
| System efficiency: | 20 W / 35 W / 55 W |
| Dimensions: | 20 W: 570 x 69.3 x 59.4 mm |
| Dimensions: | 40 W: 1,064 x 69.3 x 59.4 mm |
| Dimensions: | 60 W: 1,524 x 69.3 x 59.4 mm |
Special features:
- high efficiency and uniformity of light
- robust and impact resistant
- energy saving
- easy construction
- suitable for use in the toughest environment (tunnel area, sewage treatment plants, water reservoir, chemical industry)
- Version for direct connection via cable glands
- Through wiring 2 x 2.5mm² possible on all models
Technical specifications:
| Operating voltage: | 198-264 VAC (176-264 VDC) |
| Power Supply: | 20W / 35W / 55W |
| Luminous flux: | 2121 lm / 4245 lm / 7102 lm |
| System efficency: | 106 lm/W / 121 lm/W /129 lm/W |
| Lamp duration: | L70 B10 >50.000h |
| Protection category: | IP 66 |
| Protection class: | II |
| Beam angle: | 120° |

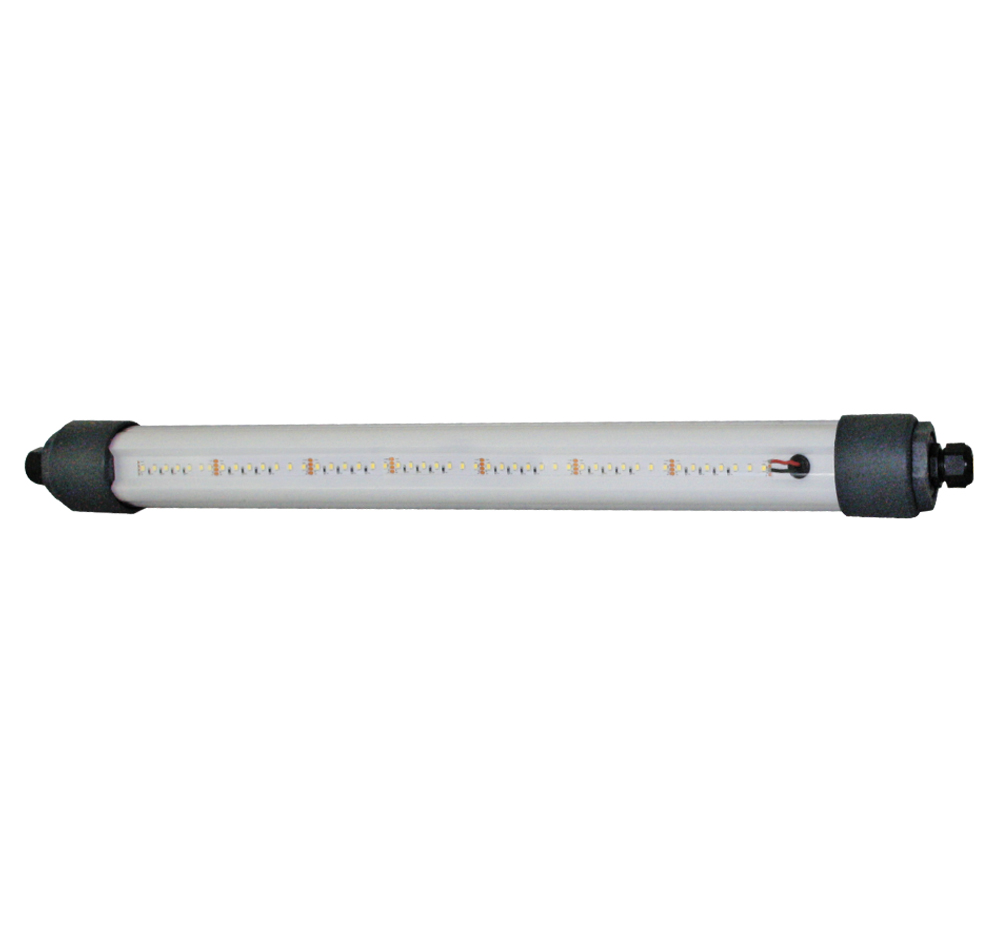

Special features:
- Low energy consumption with a high light yield
- Can be used indoor and outdoor
- Full luminous flux available immediately
- Consitent illumination, regardless of external temperature
- Unbreakable (workplace safety)
- No UV/IR radiation
- With feed-through wiring and additional internal cable gland
- Degree of protectionfor mechanical damage where acrylic tubes are used: IK10
Technical specifications:
| Input voltage: | 230 V AC |

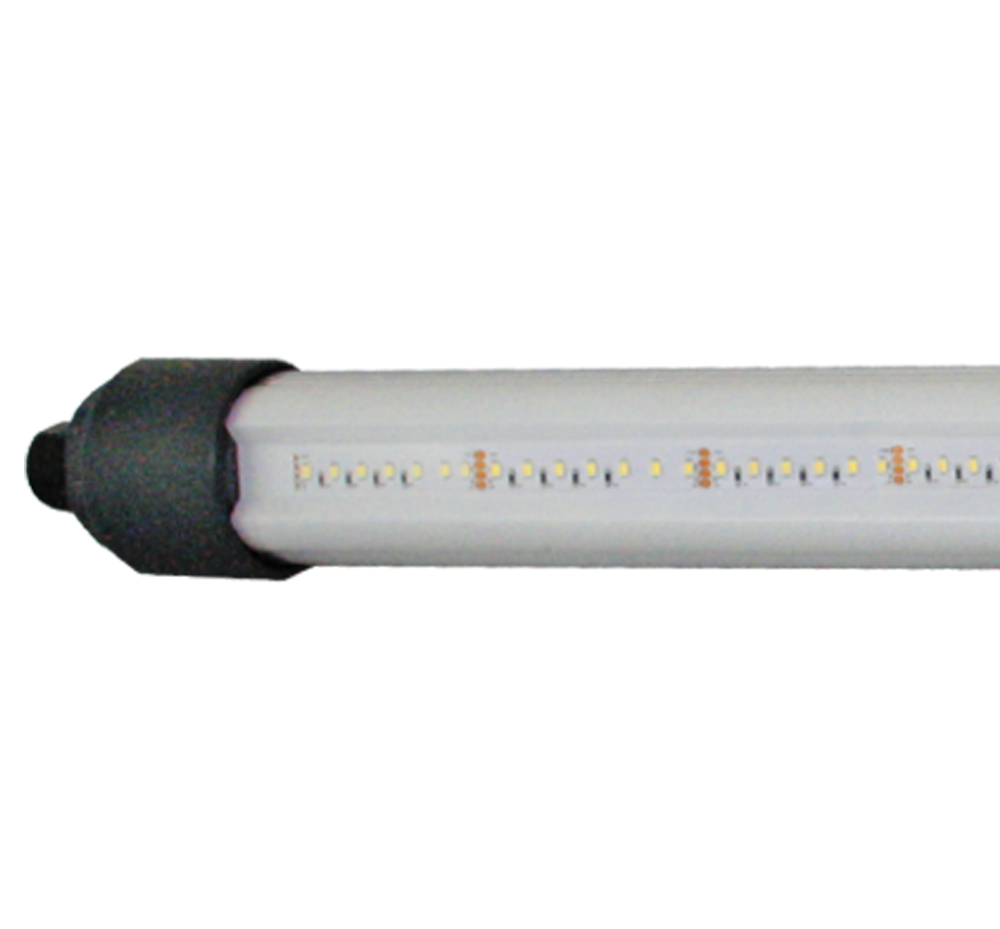

| Light source: | LED strips |
| Light colour: | 6.500 K |
| Temperature operating range: | -30 °C to +50 °C |
| Protection category: | IP 68/69 |
| Protection class: | l |
| Dimensions: | Ø 54 mm |
