- Suitable for use indoors and out
- Sturdy and flexible
- Extremely high durability (corrosion resistance)
- Can provide a compressed air connection
- Can be fitted with low-voltage combiners, data processing modules, command and signalling devices
- Can be combined with compressed air, data connections
- Optional: terminal blocks

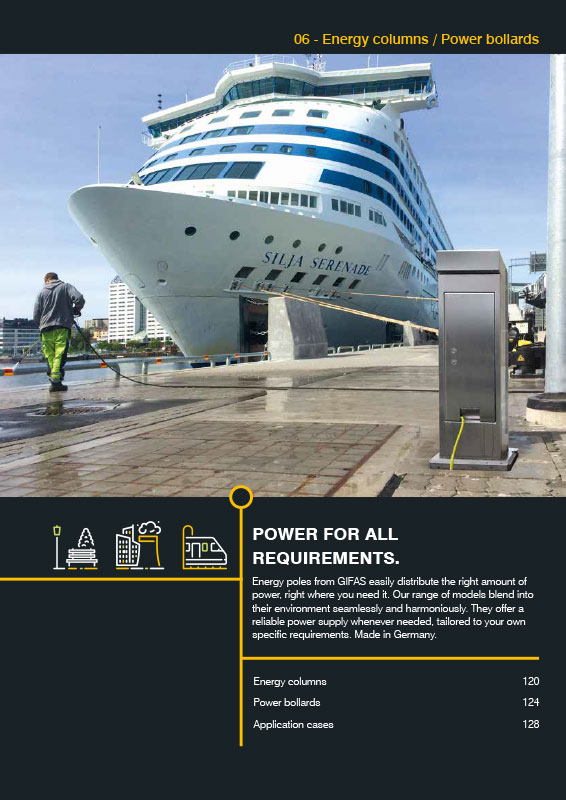

Catalog-Download
For eye-catching indoor and outdoor applications, combined with compressed air, data or water connections, every solution can be custom-made in order to fulfill the individual customer requirements. Out power bollards are safe from vandalism and, thanks to the compact internal solid rubber distributor, the column is ideally suited for tough environments. The flexible cable outlet flap means that external influences can be reduced to a minimum, even during operation.

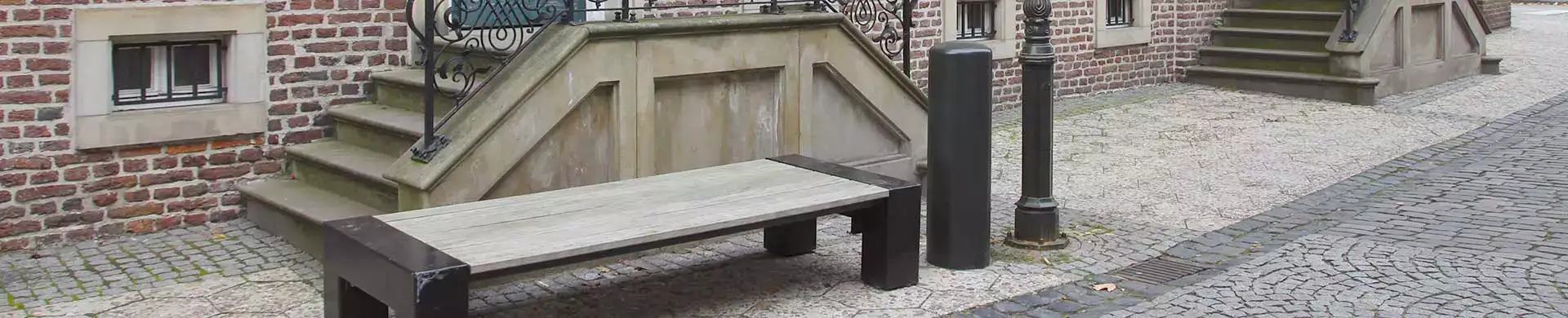

The power bollards can be used for various outdoor applications and blends in perfectly with its surroundings.
For further information please have a look at our PDF at the left side or contact us! We are looking forward to hear from you!

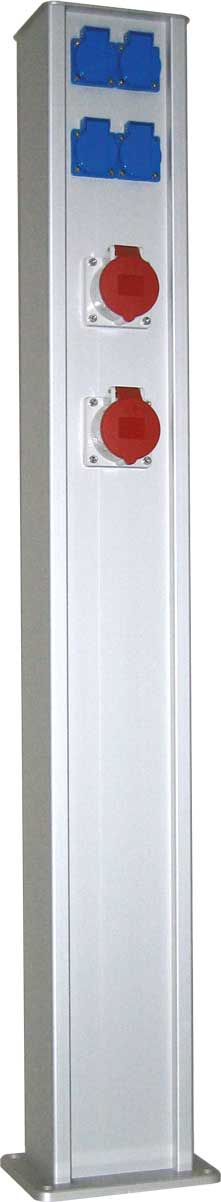

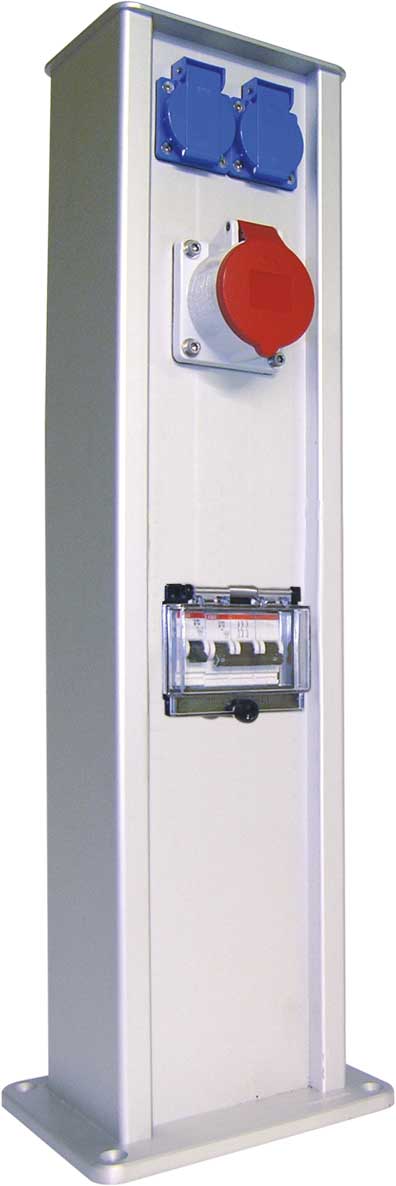

Special features:
Technical specifications:
| Dimensions: | 160 x 110 mm Length: up to 6 m to meet customer requirements |
| Protection degree: | IP 20 = no protection against moisture |
| Protection degree: | IP 54 = splash proof (for the built-in elements) |

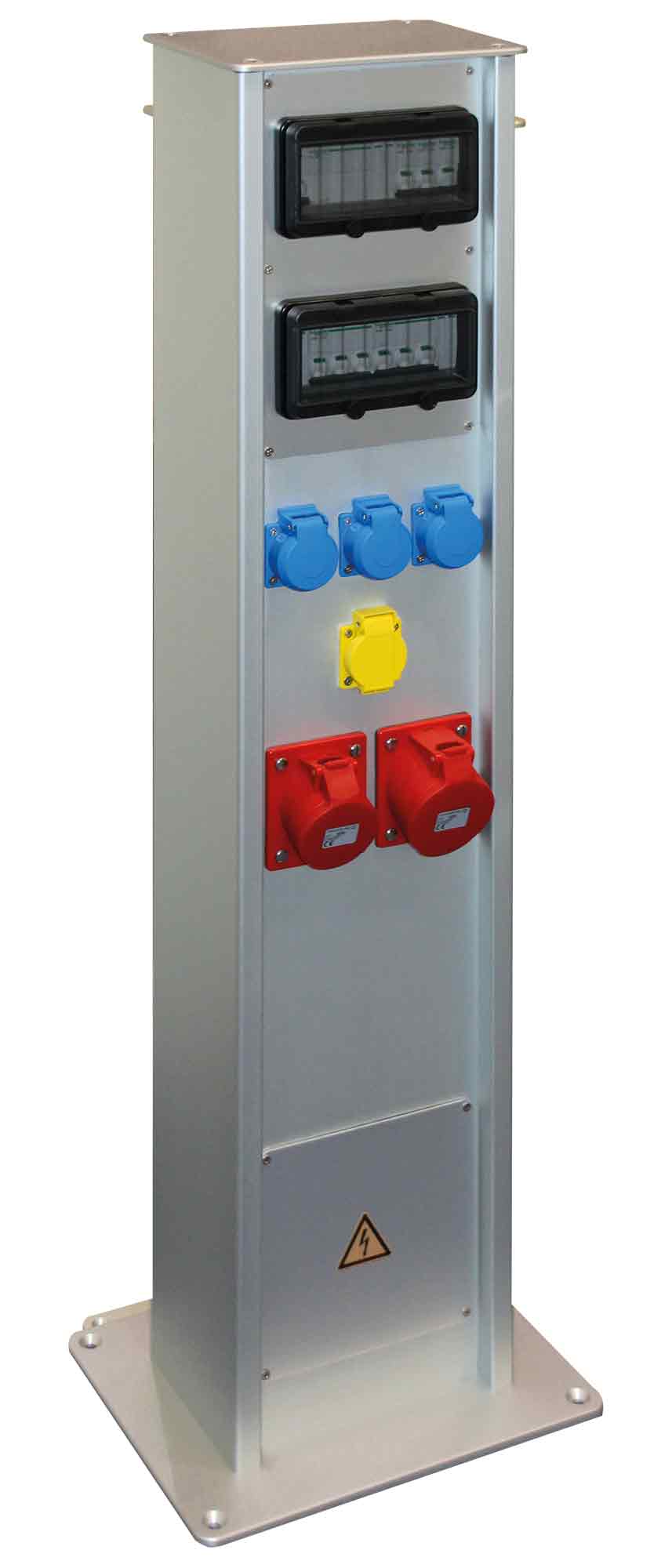

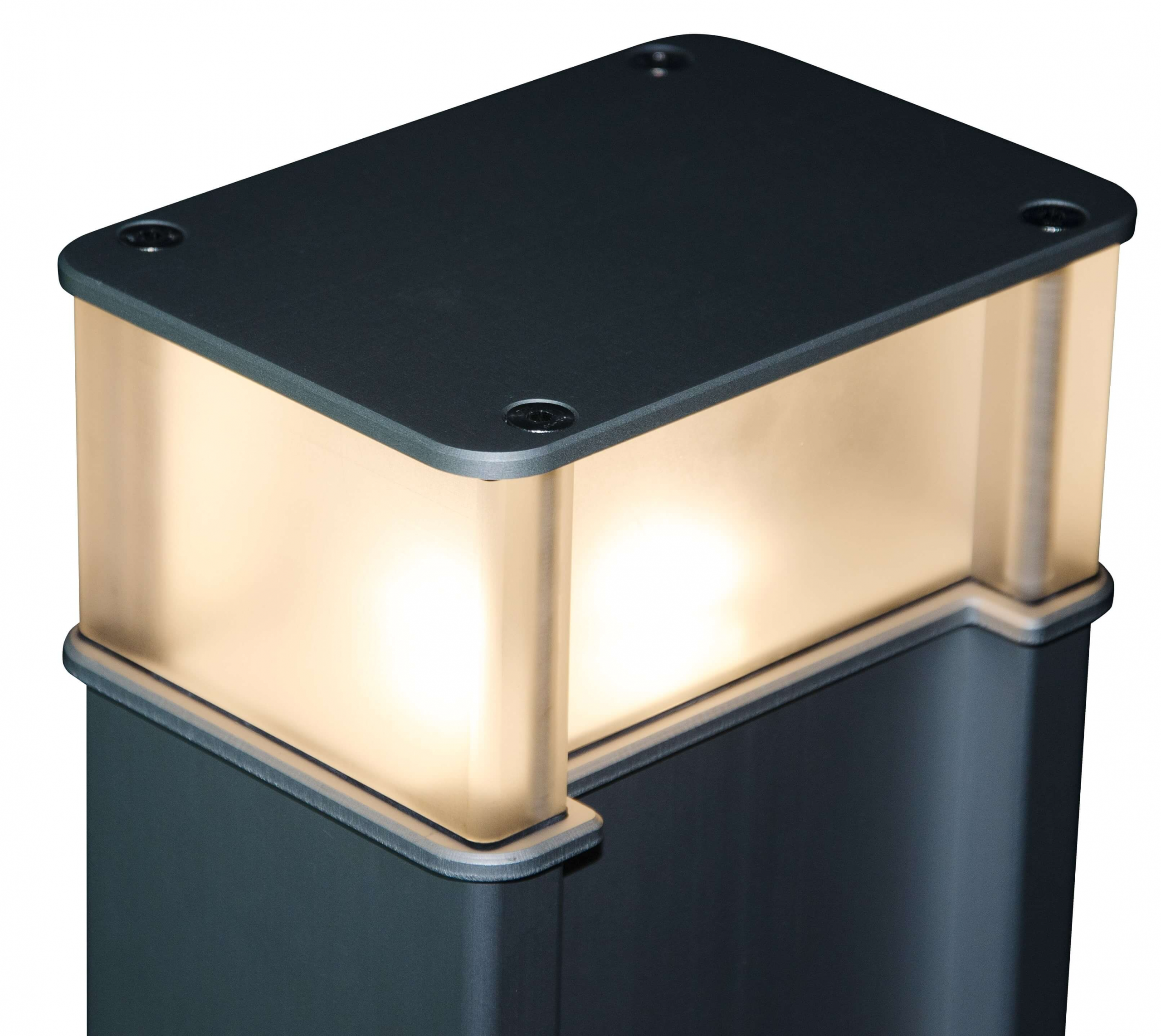

Special features:
- suitable for indoor and outdoor use
- closed aluminum profile
- robust design, high stability
- corrosion-free
- dirt-resistant surface
- individual equipment on all 4 sides
- Separator plate for separating different circuits
- customized equipment
- various drilling patterns and use of single or
- Multiple frame possible
- Ceiling connection variant for a vertical connection technology
- Equipped up to a height of 6m
Technical specifications:
| Dimensions: | 230 x 150 mm |
| Protection degree: | IP 65 (with appropriate fittings) |
| Equipment: | on all 4 sides according to customer request |

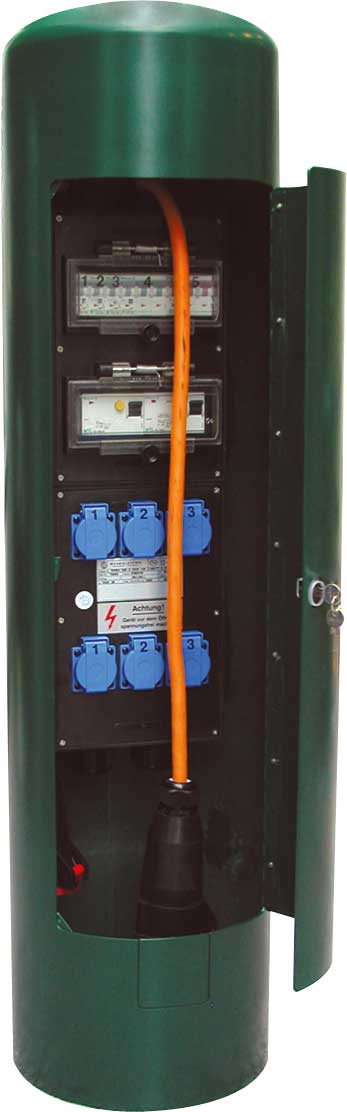

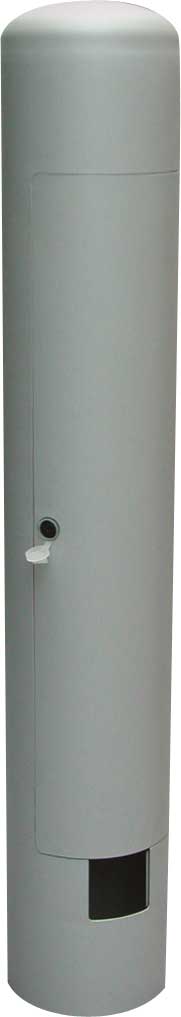

Special features:
- Excellent operating safety and protection against unauthorised access and vandalism
- Customised distributor equipment (solid rubber distributor) as per the customer’s wishes, technical specifications and requirements
- Securing material installed under impact-resistant Macrolon cover
- When closed, energy is drawn via the cable outlet flap below the doors
- Also useful as transit protection and route securing in combination with a secure and problem-free energy supply
Technical specifications:
| Dimensions: | Ø = 204 x H = 1200 mm RONDO 200 Ø = 304 x H = 1200 mm RONDO 300 |
| Weight: | approx. 25 kg RONDO 200 approx. 45 kg RONDO 300 |
| Material: | V2A stainless steel construction powder-coated |
| Power supply: | built into the bollard |
| Lock: | door lockable with a cylinder lock |
| Colour: | available in all RAL colours special colours are available on request |

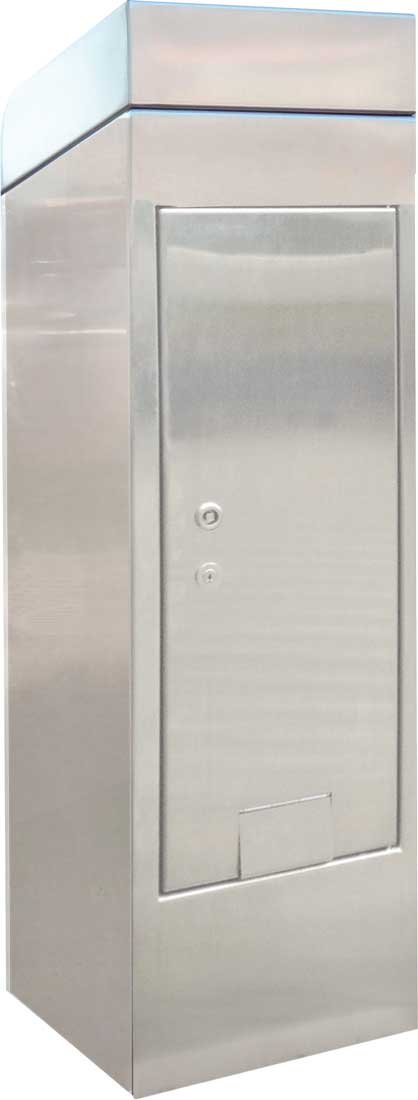

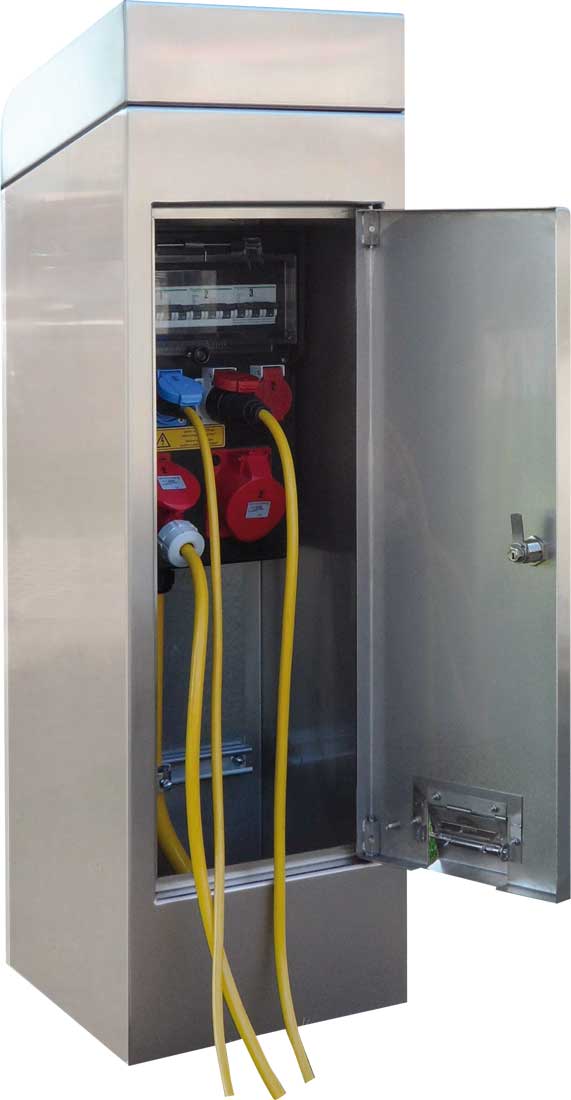

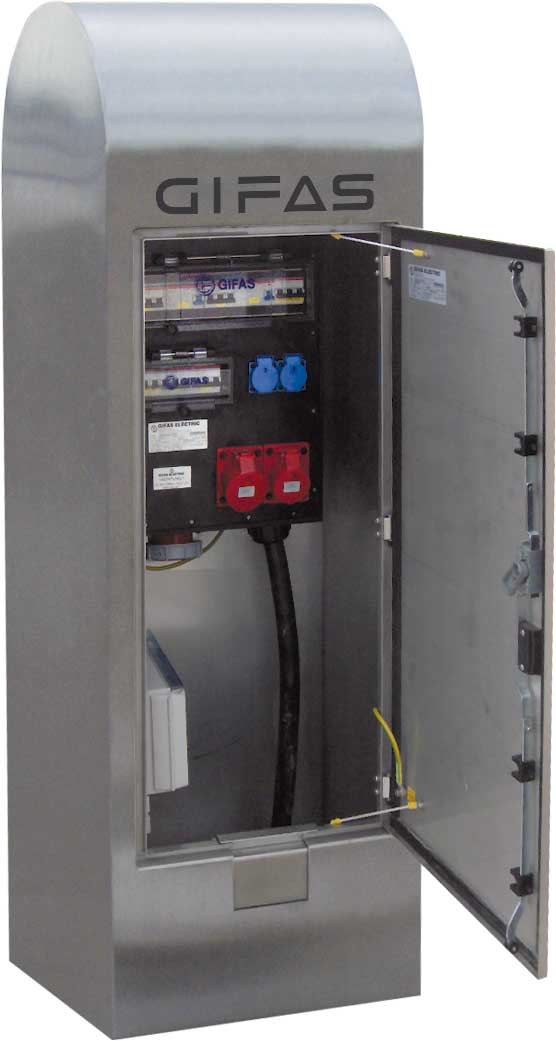

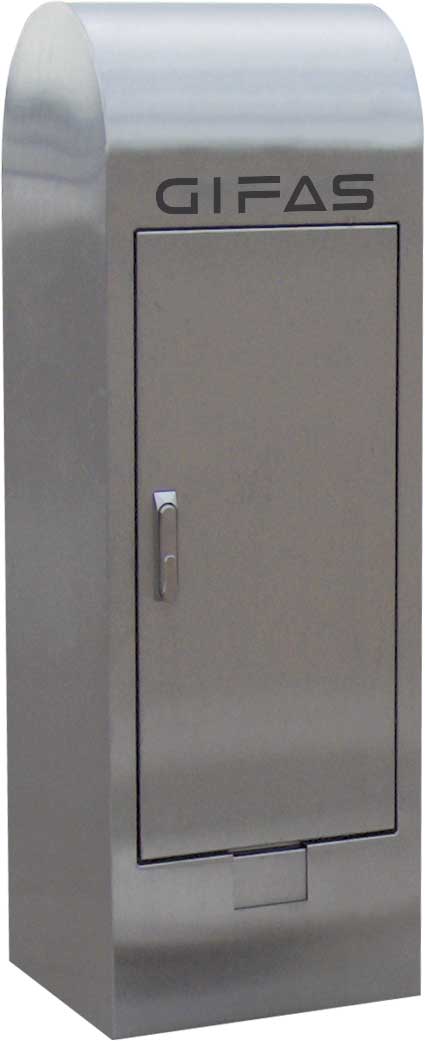

Special features:
- Sturdy stainless steel design
- Individual distributor equipment (solid rubber distributor) as per the customer’s wishes
- Securing material installed under impact-resistant Macrolon cover
- Service door with cylinder lock
Technical specifications:
| Protection category: | IP65 with closed cable feed |
| Material: | V4A stainless steel construction – powder-coated |
| Lock: | lockable door with cylinder lock |
| Total weight: | 120 kg |
Special features:
- modular construction
- 3 possible variant covers
- various power distribution options
- individual lock variants
Technical specifications:
| Protection category: | IP65 with closed cable feed |
| Material: | V4A stainless steel construction – powder-coated |
| Lock: | lockable door with cylinder lock |
| Fixation: | concrete anchor |
