Schutzrohrleuchte der Serie StreamLED 2 mit schwarzen Endkappen und gelbem Anschlusskabel

Now available in the online store!

StreamLED 2 SL70

LED tube light

Through-wiring 2×2.5mm2 possible for all models

Suitable for use in the harshest environments (tunnels,
sewage treatment plants, water reservoirs, chemical industry)

D – Marking according to VDE 0711-2-24 or EN 60598-2-24

High efficiency and uniformity of light

Extremely switching-resistant (> 1 million)

ENEC certification

Description

The StreamLED 2 is the answer to the market trend away from classic LED tubes to fitted LED modules. It has a high luminous efficacy with greatly reduced failure frequency. Glare is minimised by a satinised special tube – further features are the high protection category (IP66) and the compact design.

Product features

High efficiency and uniformity of light
Robust and impact resistant
Energy-saving
Easy to install
Suitable for use in the harshest environments (tunnels, sewage treatment plants, water reservoirs, chemical industry)
Design for direct connection via cable glands
Through-wiring 2×2.5mm2 possible for all models

Technical data

Input voltage:	198 - 264 VAC (176 - 264 VDC)
System efficiency:	106 lm/W / 121 lm / W / 129 lm / W
System power:	20 W / 35 W / 55 W
Luminous flux:	2.121 lm / 4.245 lm / 7.102 lm
Light colour:	4.000K / 5.000K (3.000K auf Anfrage)
Beam angle:	120°
Service life:	[L70/B10] > 50.000h
Protection category:	IP66
Shock resistance:	IK10
Protection class:	II
CRI:	Ra >80
Operation range of temperature:	–25° C to +40° C
Housing:	PMMA, Cover caps anthracite RAL7016 / tube transparent matt
Dimensions (Ø):	70mm

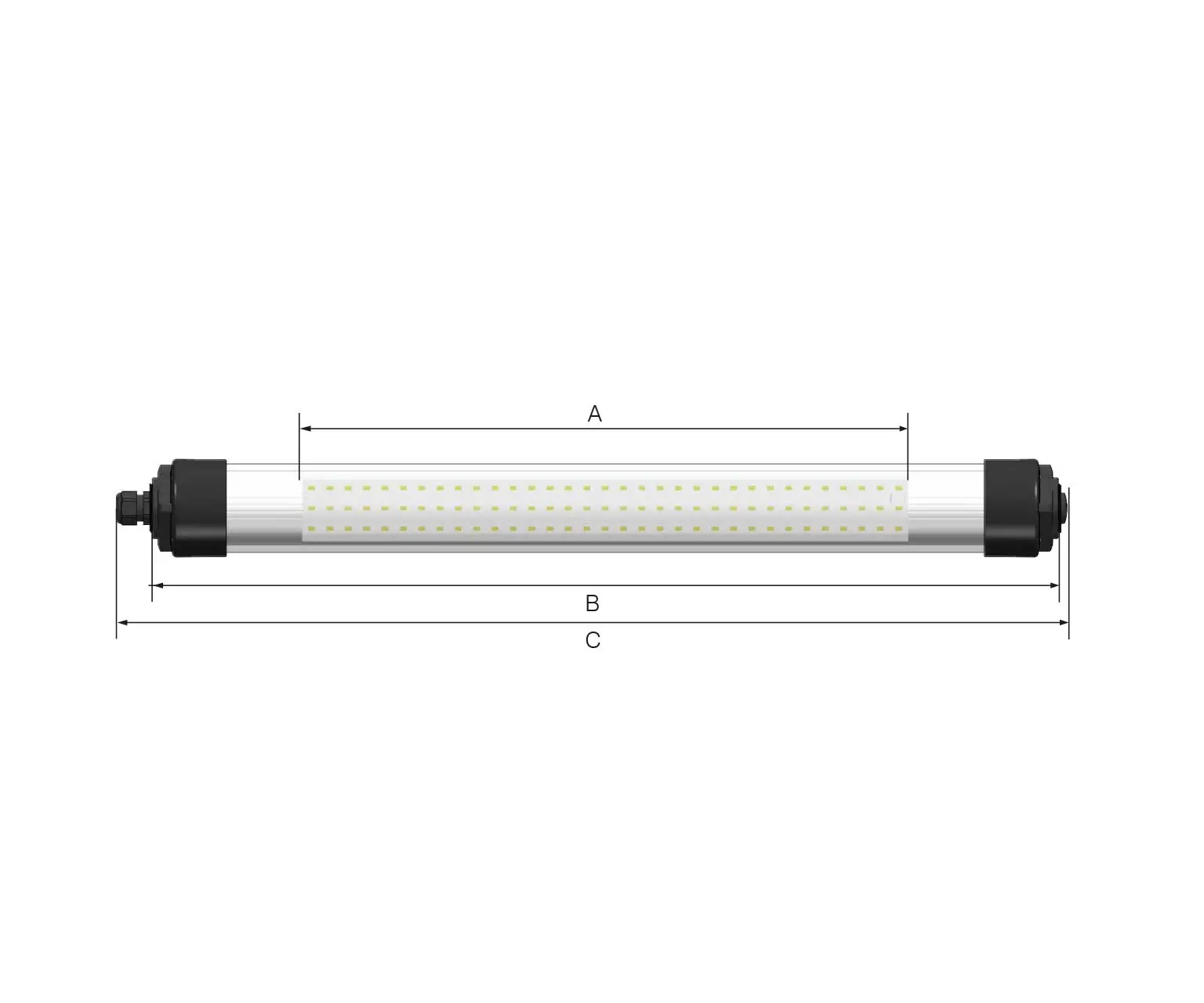

Assembly examples

Item no.	Voltage	Power	Light colour	A (mm)	B (mm)	C (mm)	Onlineshop
860666	230 VAC	20W	4.000K	479	719	751	Buy now
860667	230 VAC	20W	5.000K	479	719	751	Buy now
860668	230 VAC	35W	4.000K	958	1.198	1.230	Buy now
860669	230 VAC	35W	5.000K	958	1.198	1.230	Buy now
860670	230 VAC	55W	4.000K	1.437	1.677	1.709	Buy now
860671	230 VAC	55W	5.000K	1.437	1.677	1.709	Buy now
