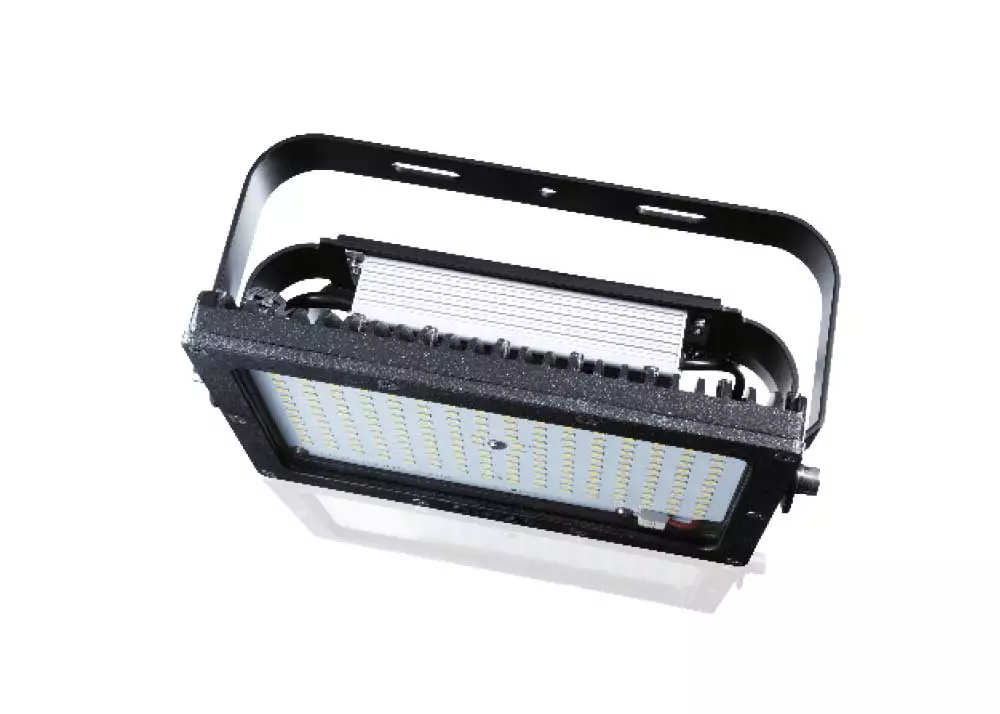

AlphaLUXX

AlphaLUXX

LED floodlights

Designed, Developed and Produced by GIFAS
Large power spectrum up to 128W
Wide selection of light colors
Certifications: CB, CE, D-marking
Robust housing made of corrosion-resistant die-cast aluminum
Suitable for ambient temperatures of up to +60°C
PTFE coating against dust and dirt deposits
5-year guarantee


Description

In areas such as industry, logistics and workshops, working materials are usually handled roughly. Reliable robustness and durability are therefore crucial requirements for technical luminaires in these areas of application. The AlphaLUXX from GIFAS was specially developed for these and other environmental conditions. With a surface-optimized die-cast aluminium housing, special PTFE non-stick coating for minimized dust and dirt adhesion and polycarbonate lens for increased splinter protection, the IK10-certified luminaire provides reliable temperature management for environments of up to 60° Celsius.

Product features

  • Robust housing made of corrosion-resistant die-cast aluminum
  • Dirt-repellent PTFE surface coating,
  • Suitable for the food industry
  • Dimmable (DALI, 1-10V) optional
  • Low voltage versions 20-48VDC optional
  • Other housing color or lens optional
  • Other color temperatures optional
  • Toughened safety glass (ESG) or impact-resistant plastic pane (PC)
  • Custom-made all-round U-profile seal
  • Custom-made, durable heat-conducting foil for permanently reliable

    reliable heat dissipation of the LED board

  • Low heat generation thanks to state-of-the-art LED technology
  • Pressure equalization element for extreme temperature fluctuations
  • Full luminous flux is available immediately after switching on
  • Low energy consumption with high luminous efficacy
  • Maintenance-free
  • Wide temperature range (up to 60°C)
  • No UV/IR radiation
  • Insensitive to vibration
  • Accessories available from stock

Technical data

Input voltage: 100-277 VAC (50/60Hz)
Light source: SMD-LEDs
System power: 25W / 40W / 60W / 90W / 111W / 128W
Luminous flux: 3,550lm / 5,500lm / 7,700lm / 12,800lm / 16,500lm / 18,700lm
System efficiency: 4,000K / 5,000K
Beam angle: 120°
CRI-Index: Ra >80
LED lifetime: [L70/B10] > 80,000h
Protection category: IP65
Protection class: I
Impact resistance: IK10 (for version with PC cover)
Max. surface temperature: +90°C (suitable for use in operating areas with a fire hazard)
Operating temperature: 25W -30°C to+60°C
40W -30°C to +55°C
60W -30°C to +50°C
80W -30°C to +60°C
100W -30°C to +55°C
120W -30°C to +50°C
Housing material: Die-cast aluminum / PTFE-coated (suitable for the food industry)
Cover 25W-60W / 80-120W:

3mm PC clear, optionally satinized or optionally 3mm ESG satinized, clear /
5mm PC clear, optionally satinized or optionally 5mm ESG satinized, clear

Connection cable: 1m
Weight 25W-60W / 80-120W: ca. 2.7kg / ca. 7kg
Dimensions (LxBxH) 25W-60W / 80-120W: 289x176x85.5mm / 389x252x106.5mm
Certifications: CB, CE, D-marking


Assembly examples



Article no.
4,000K
Article no.
5,000K
Performance Disc
291030 800083 25W PC clear
861008 292147 25W ESG clear
296048 800075 40W PC clear
294276 291482 40W ESG clear
313261 800084 60W PC clear
291842 292914 60W ESG clear
313263 800074 90W PC clear
800260 800049 90W ESG clear
313262 800098 110W PC clear
860968 800048 110W ESG clear
800355 800054 128W PC clear
290085 800043 128W ESG clear

Supplied fully assembled with connecting cable, coupling and plug

Accessories



Article no. Description
290777 Connection cable 5m H07RN-F 3×1.5mm² with Schuko plug and cable connector
293825 Mounting bracket steel 5mm for AlphaLUXX 25/40/60
293827 Mounting bracket steel 6mm for AlphaLUXX 80/100/120
