- Fully equipped and pre-set
- Impact-resistant plastic
- Incl. wall mount
- Factory-fitted with lock (can be set to continuous tension)
- Thermal protection
- Small, easy to handle, sturdy, easy to assemble
- Standard: IEC 1242

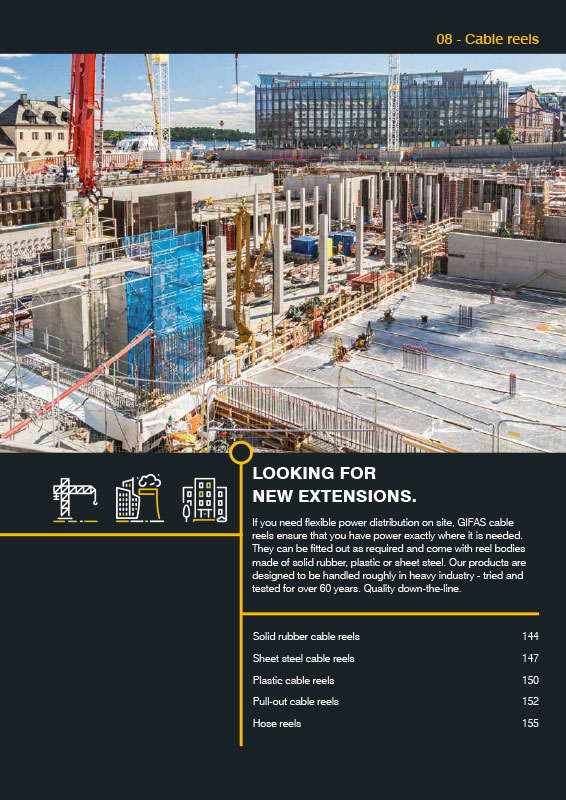

Catalog-Download
The GIFAS cable reels guarantee an absolute safe and proper function. Thanks to its robustness, it makes them suitable for diverse applications in industrial, construction and industry. Various mounting options are already available from stock.
For further information please have a look at the PDF on the left side or contact us! We are looking forward to hear from you!
Special features:
Technical specifications:
| Pull-out length: | 5 to 7 m |
| Slip ring: | 2- to 3-pole |
| Operating voltage: | max. 230 V |
| Cable: | 7 m 2×1.0 qmm Thermoplast cable H05VV-F plus 1 m free-hanging |
| Output coiled: | 1.100 W |
| Output uncoiled: | 1.600 W |
| Dimensions W x H x D: |
105 x 190 x 215 mm |
| Weight: | approx. 2.3 kg |
| Protection category: | IP 42 |
Special features:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from impact-resistant plastic
- Incl. fastening clip
- Thermal protection (2 to 5-pole)
- Special cable black, end cut smooth, no connection coupling
- Factory-fitted with lock, can be set to continuous tension
- Cable back stop with toothed lock every 50 cm
- Easy to disengage if the cable is to be continuously under tension
- Easy to handle, sturdy, easy to assemble
- Standard: IEC 1242
Technical specifications:
| Pull-out length: | 5.5 to 12.5 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category XF: | IP 42 |
| Cable: | H05VV-F oder H07RN-F |
Special features:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from impact-resistant plastic
- Incl. fastening clip
- Thermal protection (2 to 5-pole)
- Special cable black, end cut smooth, no connection coupling
- Factory-fitted with lock, can be set to continuous tension
- Cable back stop with toothed lock every 50 cm
- Easy to disengage if the cable is to be continuously under tension
- Easy to handle, sturdy, easy to assemble
- Standard: IEC 1242
Technical specifications:
| Pull-out length: | 5.5 to 12.5 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category XL: | IP 43 |
| Cable: | H05VV-F or H07RN-F |
Special features:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from cast aluminium (silver-grey)
- Fastening clip
- Return spring made from special steel
- Special cable black, end cut smooth, no connection coupling
- Factory-set to continuous tension, adjustable locking mechanism
- Easy to handle, sturdy
- Easy to assemble
- Standard: IEC 1242
Technical specifications:
| Pull-out length: | 8 to 24 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category PRC: | IP 42 |
| Cable: | H05VV-F oder H07RN-F |
Special features:
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from cast aluminium (silver-grey)
- Fastening clip
- Return spring made from special steel
- Special cable black, end cut smooth, no connection coupling
- Factory-set to continuous tension, adjustable locking mechanism
- Easy to handle, sturdy
- Easy to assemble
- Standard: IEC 1242
Technical specifications:
| Pull-out length: | 8 to 24 m |
| Slip ring: | 2- to 5-pole |
| Operating voltage: | max. 400 V |
| Protection category PRL: | IP 43 |
| Cable: | H05VV-F oder H07RN-F |
Special features:
- Pull-out cable reel made from hot-varnished aluminium and steel
- On the back is an additional bracket made from aluminium for
secure ceiling or wall mounting. - Optimum traction of the cable thanks to a steel spring
- The cable reel can be supplied with H05W-F or H07RN-F cables
or without cable
Technical specifications:
| Ambient temperature: | -5 °C / +40 °C |
| Max: | coiling speed: 40 m per minute |
| Insulating voltage slip ring: | 2.5 kV |
| Protection category: | IP 65 |
| Cable: | H05VV-F or H07RN-F |
| Suitable: | for 1 to 24-pin cables with a pull-out length of max. 53 m – up to 63 A |
