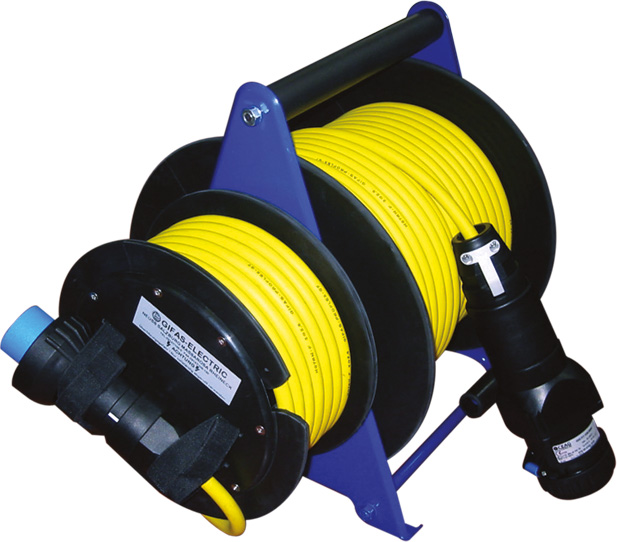

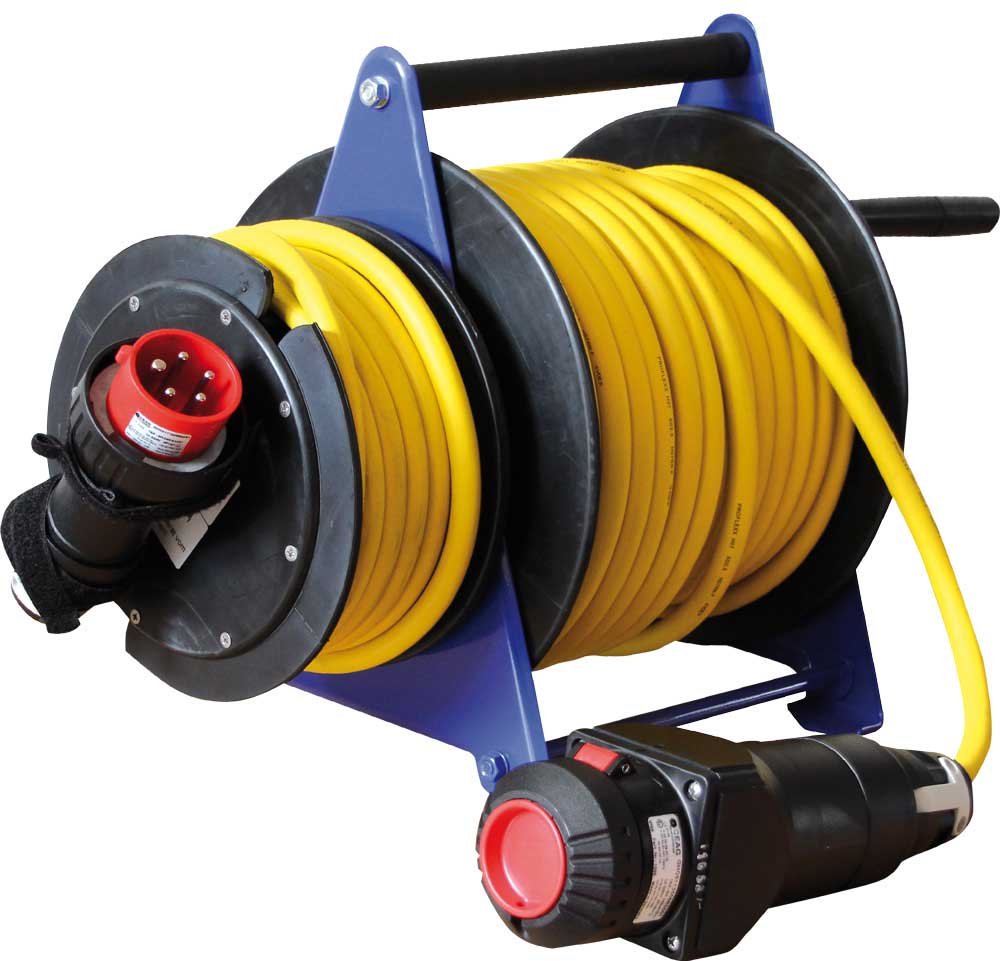

- EX solid rubber cable drum as per DIN 14680-A1
- Made from zinc-plated sheet steel with powder coating in RAL 5002 (blue) with solid rubber carrying handle
- Velcro strip for lateral fastening of the plug
- Rotating auxiliary drum
- Without slip rings and thermal overload protection
- Brass feet for low earth contact resistance and spark protection
- For explosion-risk areas Zone 1, Zone 2
- High mechanical stability
- Impact-resistant and ageing-resistant
- External, maintenance-free parking brake
- Resistant to chemical influences
- Resistant to oils and acids
- UV and weather resistant
Catalog-Download
Besondere Merkmale:
Technische Daten:
| Labeling: | Ex II 2 G/ EEx de IIA T6 |
| Explosion protection: | EEx de IIA T6 |
| Dimensions: | 554 x 380 x 310 mm |
| Protection category: | IP 65 |
| Sim. factor: | 1 |
| Weight: | 518 Ex 230 V / 16 A: approx. 24 kg / 518 Ex 400 V / 16 A: approx. 30 kg |
Besondere Merkmale:

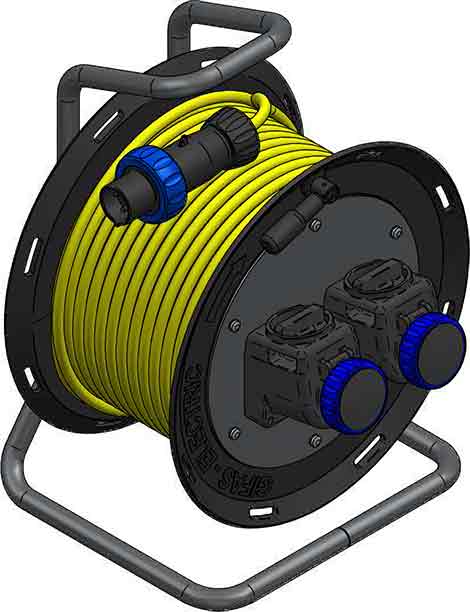

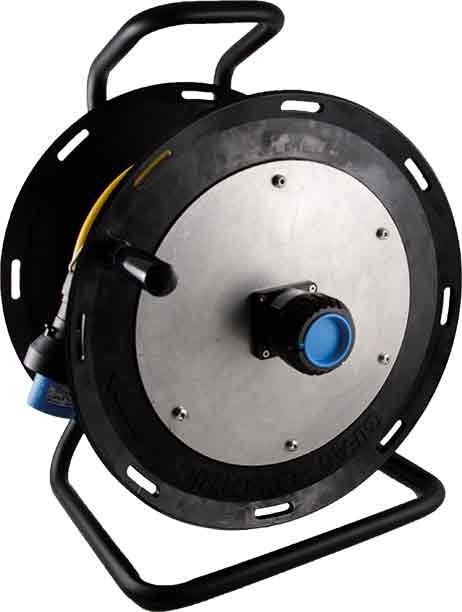

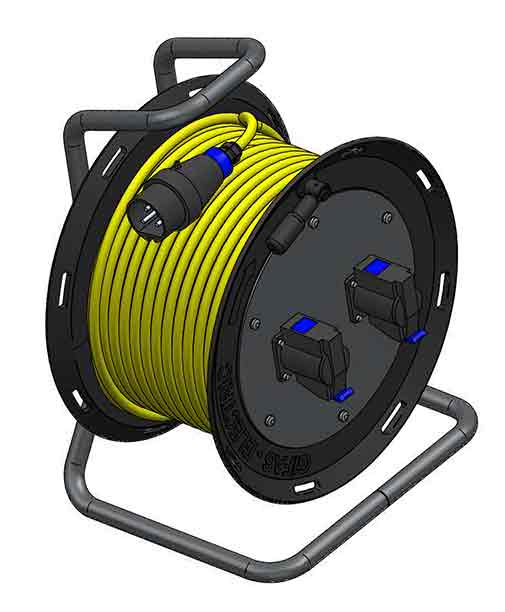

- Solid rubber cable reel in Ex design
- For explosion-risk areas Zone 1, Zone 2
- with connectors from STAHL, CEAG, APPLETON
- Zinc-plated steel tube frame, black powder-coated
- Design with K2 and Ex-labelling
- High mechanical stability
- Impact-resistant and aeging-resistant
- Maintenance free
- internal ball bearing
- practical folding handle
- Stops by mechanical latching
- Resistant to chemical influences
- Resistant to oils an acids
- UV-and wheather resistant
-
Equipped with: 2x CEE built-in socket outlets 16A or 1x CEE built-in socket outlets 32A
Technische Daten:
| Labeling: | Ex II 2 G Ex db ed IIC T65 Gb |
| Protection category: | IP 66 |
| Protection class: | II |
| GI Factor: | I |
| EC type examination certificate: : | SEV 18 ATEX 0130 |
Besondere Merkmale:

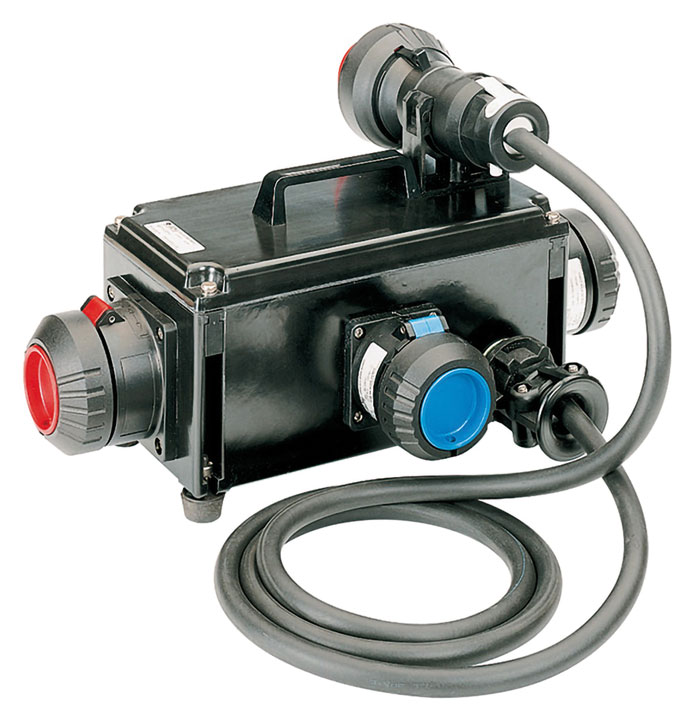

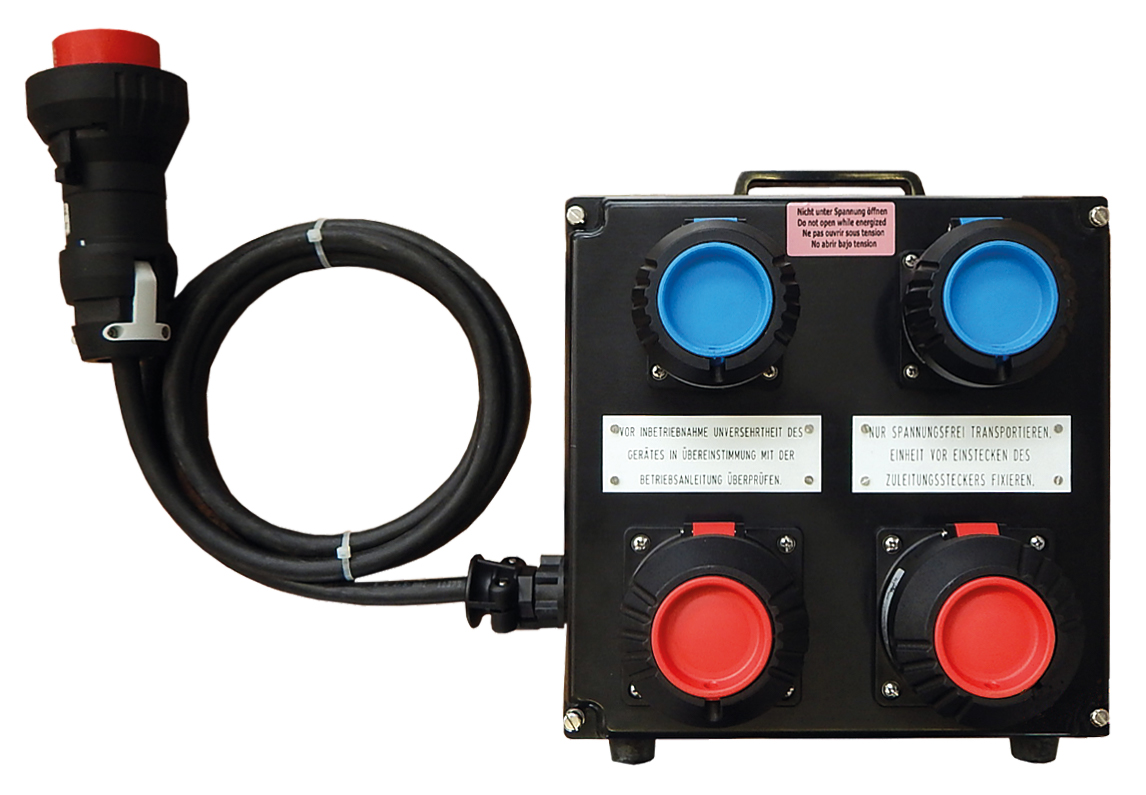

- Housing material polyester, glass fiber reinforced
- Housing color black
- Plug and bottle cover made of polyamide
- Trumpet fitting M32
Technische Daten:
| Labelling: | II 2 G / Ex e d IIC T6 |
| Explosion protection: | EEx ed IIC T5/T6 |
| Proetction category: | IP 66 |
| Frequency: | 50/60Hz |
| Temperature: | -20°C bis +40°C |
